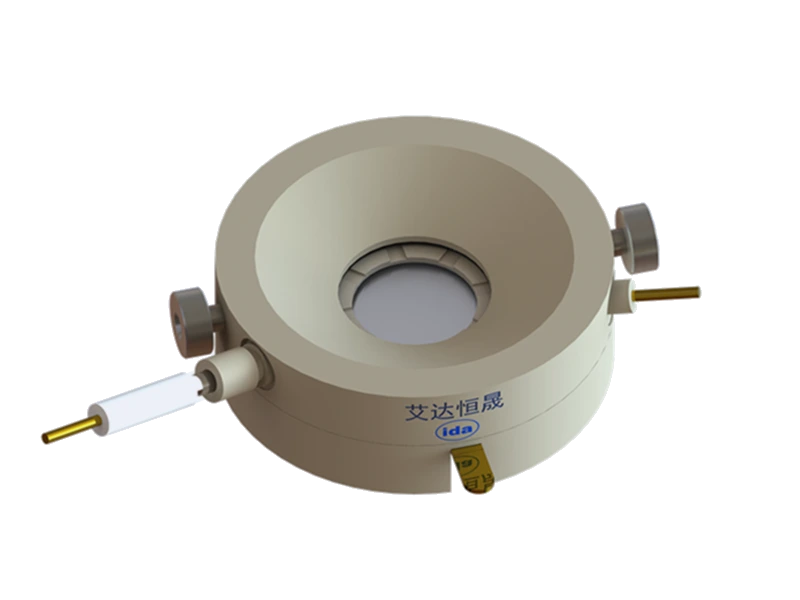

In-situ Raman Electrolytic Cell AIDA K005 suitable for installing sheet-like working electrodes, such as ITO,FTO conductive glass, metal samples, ...
Fixed distance from the working electrode to the quartz window: 3mm.
Effective diameter of optical window: φ27mm*1mm,
External dimension: Φ70×24
Sample dimension: 25×25×(0-2.2 thickness) mm
Effective reaction surface: 22x22mm
Volume: 6 mL
Including:
- Cell body (PEEK)
- Quartz detection Window
- Pt wire CE
- Ag/AgCl RE
- WE optional (not included).
