ALS Standard Voltammetry Cells
Voltammetry cells for each application
Optimizando su investigación electroquímica
ALS offers several voltammetry cells designed for different analytical needs. The SVC-3 serves as the standard cell type, accommodating 5-10 mL samples and featuring compatibility with multiple counter electrode types and microelectrodes. The SVC-2 is a versatile cell offering four measurement modes, including normal measurements, 10 mm working electrode compatibility, small sample analysis (100-200 µL), and low-temperature measurements with microelectrodes. For smaller volumes, the VC-4 cell handles 1-3 mL samples. The SVC-3C is specialized for low-temperature measurements, while the SBC bulk electrolysis cell accommodates larger volumes of 50-80 mL. All cells are constructed from hard glass for acid to neutral solutions, with polymethyl pentene options available for alkaline solutions2
Voltammetry cells Line Up

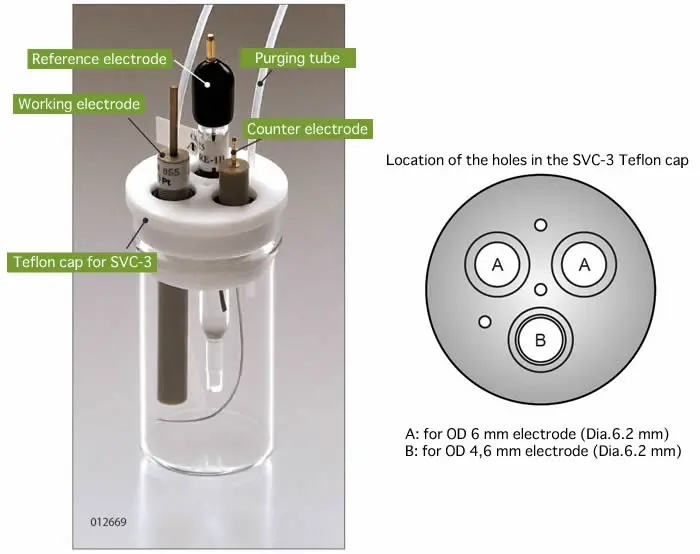

Standard Voltammetry Cell SVC-3
Características:
- Standart voltammetry cell with teflon cap with three holes for
- working electrode,
- reference electrode,
- counter electrode,
- Sample volume from 5 to 10 mL
- Well suited for measurements of ultraweak current
- Compatible with several types of electrode
- Easy removal of the dissolved oxygen
- SVC-3 can be used as a sealed cell by pushing the o-ring into hole groove.
- The microelectrode can also be set in the hole as a working electrode.
- Compared with SVC-2, it has as a characteristic that many types of counter-electrode can be used.
- Compatible with CS-3A Cell Stand.
Catalog No. | Descripción |
ALS 012669 | SVC-3 Voltammetry cell |
Contents | |
ALS 001056 | Sample vial (20 ml) 7 pcs |
ALS 002233 | Platinum counter electrode 5 cm |
ALS 012671 | Teflon cap for SVC-3 |
ALS 010537 | Purging tube 30 cm |
Catalog No. | Optional items (not included) |
ALS 012961 | Platinum counter electrode 23 cm |
ALS 012962 | Gold counter electrode 23 cm |
ALS 012963 | Nickel counter electrode 23 cm |
Working electrode and reference electrode are sold separately.
Each component could be purchased separately.
ALS 001056 Sample vial (20 mL) (10 pcs)
ALS 010537 Purge tube (ETFE) (1 m)
4 Modes Voltammetry Cell SVC-2
Características:

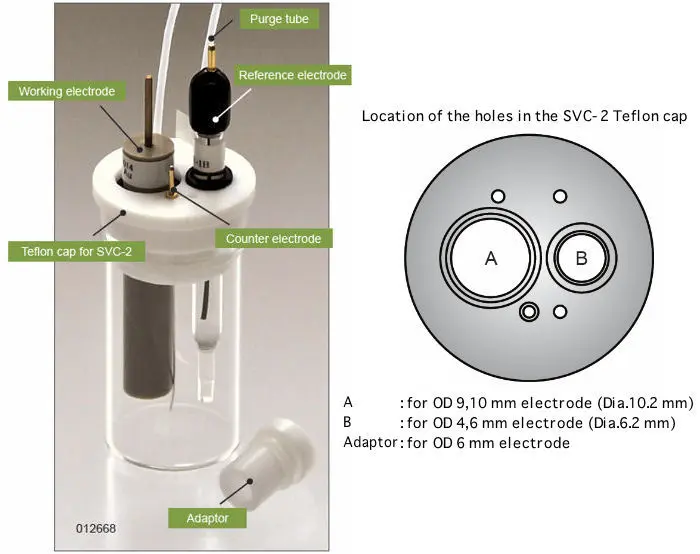

- SVC-2 Voltammetry cell can be used for 4 modes voltammetry cell setup.
- Each voltammetry cell has its specific feature. It can also be used as an oxygen-free voltammetry cell.
- Sample volume from 5 to 10 mL. Setting the sample holder of 9.0 mm of the diameter , it enables small sample measurement (100 - 200 uL).
- Well suited for measurements of ultraweak current
- Compatible with several types of electrode
- Easy removal of the dissolved oxygen
Catalog No. | Descripción |
ALS 012668 | SVC-2 Voltammetry cell |
Contents | |
ALS 001056 | Sample vial (20 ml) 7 pcs |
ALS 002422 | Platinum counter electrode 5.7 cm |
ALS 012670 | Teflon cap for SVC-2 |
ALS 010537 | Purging tube 30 cm |
Catalog No. | Optional items (not included) |
ALS 012189 | O-ring for SVC-3 (10 pcs) |
ALS 012177 | Sample holder dia 9 mm (2 pcs) |
ALS 001209 | Cell holder for 20 mL vial |
Working electrode and reference electrode are sold separately.
Each component could be purchased separately.
ALS 001056 Sample vial (20 mL) (10 pcs)
ALS 010537 Purge tube (ETFE) (1 m)
4 Operation modes

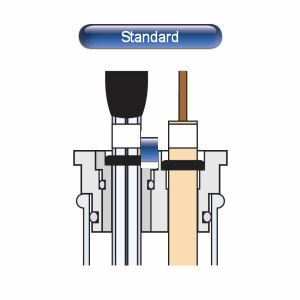

| Standard modeSet the Teflon cap adaptor to the Teflon cap. The Teflon cap adaptor is fixed with a silicon O-ring to work in an oxygen-free condiction. If you do not need the oxygen-free condiction, then the silicon O-ring can be taken out from the Teflon cap. Standard mode fits: - Working electrode (until OD: 6.0 mm) - Reference electrode - Platinum counter electrode 5.7 cm - Purging tube |

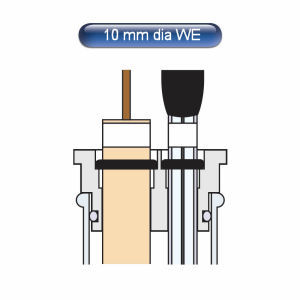

10 mm dia WE modeTake out the Teflon cap adaptor from the Teflon cap. Working electrode can be fitted directly to the Teflon cap. The O-ring will fit perfectly. It permits to have the oxygen-free condition. 10 mm WE mode fits:
|
|

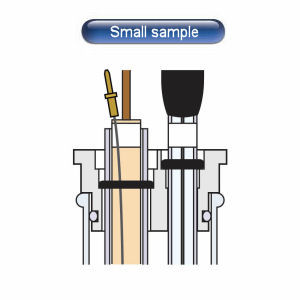

| Small samples modeTake out the Teflon cap adaptor from the Teflon cap, and set the Sample holder of the 9.0 mm of the diameter (optional item). Set the working electrode and counter electrode into the Sample holder. Small sample mode fits:
Does not work in a oxygen-free condition. |

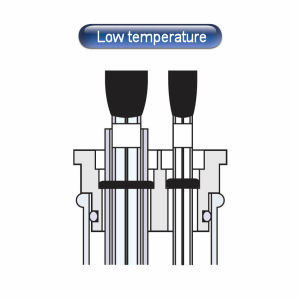

Low temperature modeTake out the Teflon cap adaptor, and set the Sample holder of the 9.0 mm diameter (optional item). Set the reference electrode into the sample holder. Low temperature mode fits: - Sample holder (OD: 9.0 mm) →Reference electrode - Platinum counter electrode 5.7 cm - Micro electrode - Purging tube |
|
Small volume Voltammetry Cell VC-4
Características:

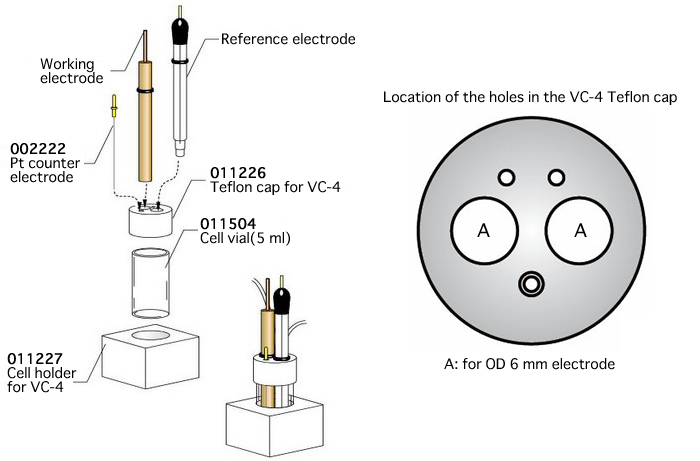

- Capable for measuring of 1 - 3 ml of sample volume using electrodes with 6 mm of the diameter.
- Furnished holder prevents the vial from spilling.
- Sample volume from 1 to 3 mL
- Including specific cell holder
- Fit the standard type (6 mm)
Catalog No. | Descripción |
ALS 011224 | VC-4 Voltammetry cell |
Contents | |
ALS 011504 | Sample vial (5 ml) 7 pcs |
ALS 011226 | Teflon cap for VC-4 |
ALS 011227 | Cell holder for VC-4 |
ALS 002222 | Platinum counter electrode 5.7 cm |
ALS 010537 | Purging tube 30 cm |
Catalog No. | Optional items (not included) |
ALS 012672 | Water-Jacketed glass cell (5mL) |
Working electrode and reference electrode are sold separately.
Each component could be purchased separately.
ALS 001056 Sample vial (20 mL) (10 pcs)
ALS 010537 Purge tube (ETFE) (1 m)
4 Operation modes
Oxygen-free Voltammetry cells SVC-3C
Características:

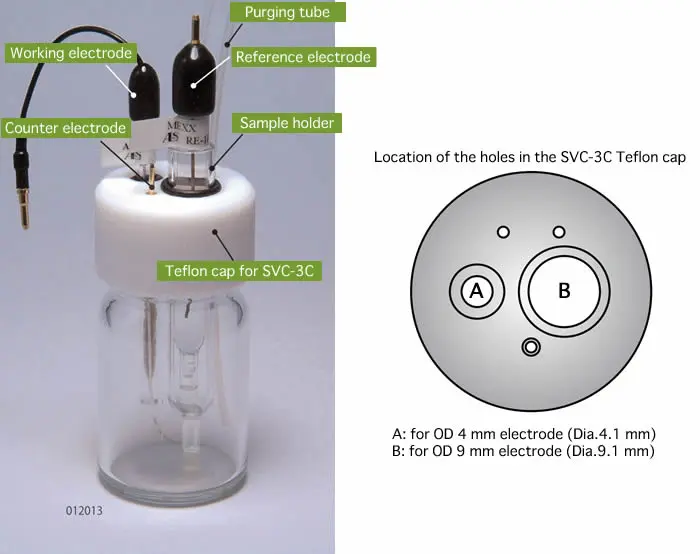

- By using SVC-3C oxygen-free Voltametry cell, researchers can get rid of influence of oxygen in the cell by bubbling nitrogen gas, and also run the experiments at low temperatures.
- For low temperature measurement, three special attention need:
- 1Fluctuation of temperature-dependent reference electrode potential.
- Increase of the solution resistance due to a decrease of supporting electrolyte salt solubility.
- Incorporation of condensation of water vapor.
Using SVC-3C Voltammetry Cell:
- Reference electrode is setting away, using sample holder.
- Micro electrode is used to allow for a measurement in high resistivity solution.
- This cell is sealed.
Catalog No. | Descripción |
ALS 012013 | SVC-3C Oxygen-free Voltammetry cell |
Contents | |
Teflon cap for SVC-3C | |
ALS 012573 | O-ring for SVC-3C (1 pc) |
ALS 012768 | Sample vial 24 ml (3 pcs) |
ALS 002222 | Platinum counter electrode 5.7 cm |
ALS 012177 | Sample holder dia 9 mm (2 pcs) |
ALS 010537 | Purge tube (ETFE) (50 cm) (2 pcs) |
Catalog No. | Optional items (not included) |
ALS 012672 | Water-Jacketed glass cell (5mL) |
ALS 012177 | Sample holder dia 9 mm (2 pcs) |
ALS 001209 | Cell holder for 20 mL vial |
Working electrode and reference electrode are sold separately.
Each component could be purchased separately.
ALS 012768 Sample vial (24 mL) (10 pcs)
ALS 010537 Purge tube (ETFE) (1 m)
Bulk Electrolysis Voltammetry Cell SBC
Características:

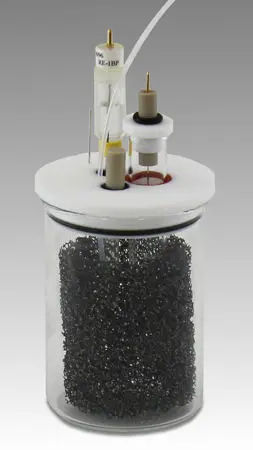

- This cell has been developed in order to perform a complete electrolysis. The carbon working electrode is a reticulated form that provides with sufficient surface area to gain the rate in electrolysis.
- It is composed with the chamber for the counter electrode, to be able to isolate the Platinum counter electrode and Porous carbon electrode, which are used with Sample vial (100 mL), Teflon cap, Gas purging tube, and CV working electrode (sold separately).
- CV working electrodes will be used to examine the progress of electrolysis. When not in use, port plug can be plug in.
- Water Jacketed Glass cell, and Platinum or Gold gauze electrode can be purchased separately.
- Suitable for:
- Quantitation of mass transfer of the electron per molecule
- Measuring the absolute quantity of the analyte
- Electrolytic synthesis of new materials (generally in quantity of milligram)
- etc.
Catalog No. | Descripción |
ALS 013647 | SBC Bulk electrolysis cell |
Contents | |
ALS 014088 | Sample vial (100 mL) |
ALS 013616 | PCE Porous carbon electrode |
ALS 012961 | Platinum counter electrode 23 cm |
ALS 001198 | Lid for counter electrode |
ALS 001196 | Chamber for counter electrode |
ALS 001236 | O-ring for counter electrode |
ALS 009131 | Port plug |
ASL 000178 | Stirrer bar |
ALS 013648 | Teflon cap for SBC |
ALS 010537 | Gas purging tube |
Catalog No. | Optional items (not included) |
ALS 002250 | Platinum gauze electrode 80 mesh (25 x 35 mm) |
ALS 002251 | Gold gauze electrode 100 mesh (25 x 35 mm) |
ALS 001209 | Platinum gauze electrode for Bulk electrolysis cell |
ALS 012652 | Water-Jacketed glass cell (100 mL) |
ALS 013580 | Sample vial for alkaline solution (100 mL) (10 pcs) |
Working electrode and reference electrode are sold separately.
Bulk Electrolysis Voltammetry Cell SBC
Características:

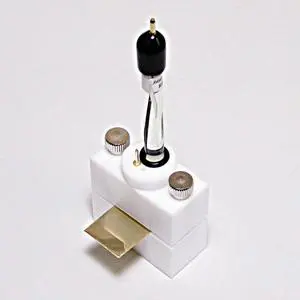

This quite handy cell is developed in order to evaluate plate material such as metal, semi-conducting plate, etc. In evaluation, a sample plate is sandwiched between cell blocks.
Applicable plate dimensions:
- width: from 10 to 23 mm
- length: approximately 25 mm (depends of the connection way)
- thickness: until 3 mm
Liquid contact area:
- approximately 7.8 mm
- (It is the inner diameter of the O-ring (ID: 7.8 mm). Due to the deformation when squeezed between the blocks, the area will vary slightly.)
Catalog No. | Descripción |
ALS 011951 | ALS Plate Material Evaluating Cell |
Contents | |
Teflon Cell [Body] | |
ALS 012864 | Plate Material Evaluating Cell Base |
Teflon cap | |
O-ring | |
| Screw 20 mm (x2) | |
ALS 010537 | Gas purging tube |
ALS 002222 | Platinum counter electrode 5.7 cm |
∗ Additional o-ring:
- ALS 012022 O-ring for Plate Material Evaluating Cell, 10 pcs, Viton
- ALS 012023 O-ring for Plate Material Evaluating Cell, 10 pcs, silicone
Working electrode and reference electrode are sold separately.
Cell Set Up
The assemble will be shown below, where each step will be explained with the photo switches.
- Prepare the required parts.
- Set the plate on the bottom Teflon block.
- Set the Teflon block which contains the o-ring over the plate, and tight the screw left/right uniformly (the surface of the plate in contact with the solution will depends of the inner diameter of the o-ring)
- Confirm whether the plate is fixed adequate, and fill with the electrolytic solution (approximately 1 mL).
- Set the counter electrode and a reference electrode on the battery cover, then fix it to the cell. The Pt counter electrode, from the kit is a little long, please wind before use.
- Do the connection using the alligator clip.
Specifications and selection of voltammetry cells
| Cell type | Sample volume (mL) | Teflon cap | Counter electrode | Sample vial | Features |
| SVC-3 | 5 ∼ 10 | ALS 012671 | ALS 012961 ALS 012962 ALS 012963 |
ALS 001056 ALS 001051 |
Standard type |
5 ∼ 10 | ALS 012670 | ALS 002422 | ALS 001056 | Multi purpose cell - 4 modes setting | |
| VC-4 | 1 ∼ 3 | ALS 011226 | ALS 002422 | ALS 011504 ALS 012672 |
For small sample measurement |
| SVC-3C | 5 ∼ 10 | - | ALS 002422 | - | For low temperature measurement |
| SBC | 50 ∼ 80 | ALS 012551 | ALS 012961 | ALS 014088 ALS 012652 |
For big volume / bulk electrolysis |
※Please check this page for CV measurement with 100 mL cell (sample volume 50 - 80 mL).
