demoSTAT

Your smart introduction to electrochemical instrumentation

Smart introduction to electrochemical instruments

The demoStat is a small USB-powered potentiostat/galvanostat/ZRA with integrated FRA/EIS. It can perform all conventional electrochemical techniques, including EIS.

It is intended as a low-cost investment for feasibility studies and demonstration, but is also perfectly suited for training and education. It is controlled via a USB connection from any netbook, laptop or PC that is Windows operated.

Request a quotation

USB powered

Ensures full functionality in the field without the need for an external power source, powered directly from a laptop.

Portable and lightweight design

With a small footprint of 26 x 12 x 6.5 cm and a weighting less than 600g, it is a truly high specification potentiostat for researchers on the move.

Automatic current range selection

Automatic current range selection: 1µA to 1mA

Integrated EIS up to 100kHz

Fixed 25mV potentiostatic amplitude, or 0.025*CR galvanostatic amplitude

High Data Acquisition Rate

Real time data up to 500 pnts/s. Acquisition up to 100,000 pnts/s is stored in instrument memory

Wide scanrate range

Applicable scanrates: 1µV/s to 10,000V/s

Technical Specifications

	demoSTAT
Current compliance	±5mA
Maximum compliance voltage	±6V
Maximum applied voltage	±2V
Electrode connections	3; WE, CE, RE with M3 screw connectors
Potentiostat bandwidth	150kHz
Signal acquisition	Dual channel 16bit ADC, 100,000 samples/s
Electrometer input impedance	100Gohm //150pF

Specifications subject to change.

	demoSTAT
Applied potential range	±2V, 1mV resolution
Applied potential accuracy	0.5% of value or 5mV
Current ranges	±1µA to ±1mA
Measured current resolution	0.015% of current range, minimum 150pA
Measured current accuracy	0.1% of range + 0.5% of value

Specifications subject to change.

	demoSTAT
Applied current resolution	0.2% of applied current range
Applied current accuracy	0.1% of range + 0.5% of value
Galvanostatic current ranges	±1µA to ±1mA
Potential ranges	±5V
Measured potential resolution	0.15mV
Measured potential accuracy	0.5% or 5mV

Specifications subject to change.

Model	demoSTAT
Frequency range	10µHz to 100kHz
Amplitude	Fixed 25mV potentiostatic amplitude, or 0.025xCR galvanostatic amplitude

Specifications subject to change.

Model	demoSTAT
Analog in/out	±5V input only (0.15mV resolution)
Digital input/output	1 input (0-3.3V)

Specifications subject to change.

Model	demoSTAT
Power requirements	Via USB
Interfacing	USB
Size (w x d x h)	95 x 60 x 8mm
Weight	50g
PC requirements	Windows 8/10/11, with free USB port

Specifications subject to change.

Iviumsoft: all you need in a single suite

Ivium provides outstanding software to match every research application.
IviumSoft intuitive software suite is feature-rich and is common to all of IVIUM instruments. It comprises several operation modes which offers one complete powerful and versatile package of control and analysis software, suitable for any Windows operated system.

It is free with each instrument with unlimited installs.

Included applications:

CycliScan.
Multichannel Mode (MC Mode).
IviLAB.
Batch Mode.

Explore IviumSoft

Performs all conventional Electrochemical techniques
including impedance up to 100kHz.

Linear Sweep Voltammetry (LSV)

Linear Sweep Current averaging (LSV CA)

Linear Sweep Potentiometry (LSP)

Cyclic Voltammetry (CV)

Cyclic Voltammetry Current averaging (CV CA)

Cyclic Potentiometry

Impedance Constant E (PEIS)

Impedance Constant I (GEIS)

Impedance Potential lscan

Impedance Current scan

ChronoAmperometry (CA)

ChronoPotentiometry (CP)

MixedMode

Eoc Monitor (EOC)

Polarization Resistance (PR)

Tafel Plot

PotentioDynamic (PD)

Cyclic Polarization

Galvanic Corrosion

Corrosion Rate Monitor

ElectroChemical Noise (EN)

CycliScan

Amperometric Detection

Differential Pulse Voltammetry (DPV)

Square Wave Voltammetry (SWV)

Normal Pulse Voltammetry (NPV)

AC Voltammetry

AC Detection

Potential Stripping Voltammetry

Voltammetric Pulse Builder

Are you looking for additional equipment

Counter Electrodes

EIS data analysis

RRDE
Devices

Voltammetry cells

Reference Electrodes

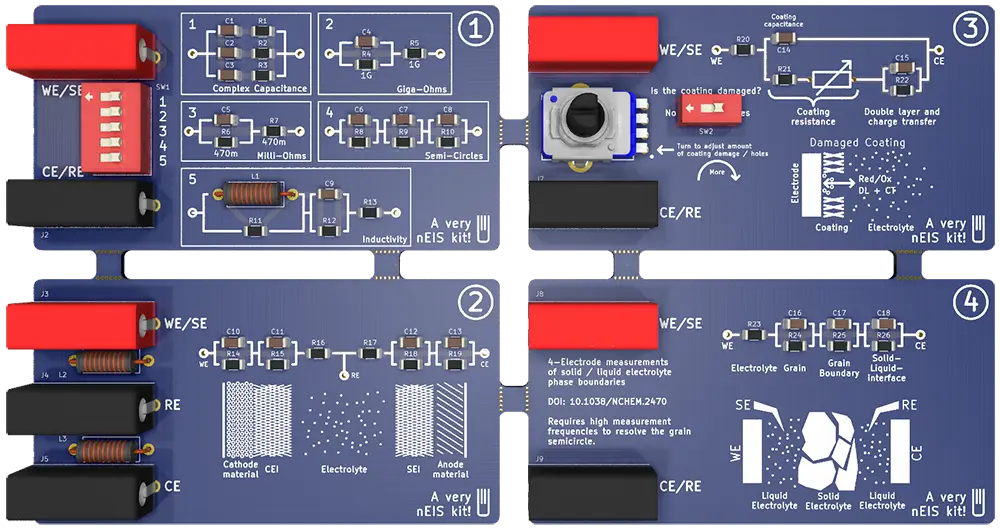

nEIS
