Multiplexores

Mediciones secuenciales o simultáneas con su dispositivo Ivium

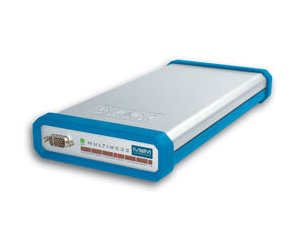

MultiWE32

Módulo multipotencióstato especializado que ofrece control simultáneo de hasta 32 electrodos de trabajo (apilables hasta 256 EWs) contra una única configuración de CE/RE.
Diseñado para aplicaciones de baja corriente en nanotecnología, sensores e investigación biotecnológica. Puede mejorarse con el preamplificador HiSens32 para aumentar la sensibilidad del sistema.

MultiWE 32 Flyer

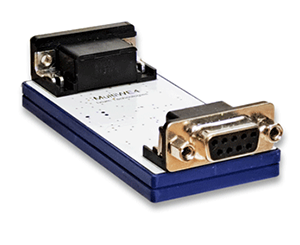

WE4

Multi-potentiostat module enabling 4 working electrodes operation against single CE/RE setup. Connects to Ivium potentiostats via HD15 connector. Features ±2.5mA maximum current per WE, ±10V potential range, and 10nA-1mA current ranges. Supports simultaneous DC sampling and EIS measurements up to 100kHz.

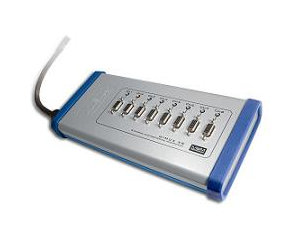

uMUX

Enables sequential control of multiple electrochemical cells using a single Ivium potentiostat. 8 independent channels per module, with complete electrode switching capabilities (WE, CE, RE, S, WE2). Modular and stackable system up to 8 units, allowing control of up to 64 channels. Using relay-based switching, it's compatible with various Ivium potentiostats including high-voltage models.

HiMUX.XR

High-performance multiplexer featuring 8 independent channels with dedicated electrometers per module (stackable up to 64 channels)

Fast channel switching with ±5A/±20V compliance. Continuous RE/S connection for rapid channel switching without cell disturbance. High-frequency response through shielded design and independent electrometers.

Complete electrode configuration (WE, CE, RE, S, WE2, GND). Integrated software control for automated channel selection.

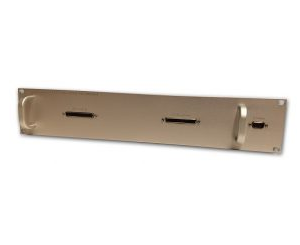

MUXWE64

Sequential multiplexer to control up to 64 multiplexed working electrodes or 2x32 electrodes in separate cells. Operates one WE at a time through relay switching. Specifications: ±1A maximum current per WE, ±10V maximum voltage, HD15 interface connection.

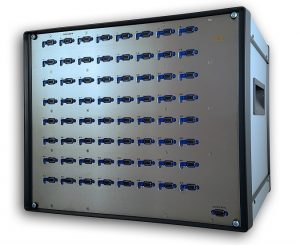

uMUX64

64-channel multiplexer module for sequential control of electrochemical cells. Features 5-electrode switching configuration (WE, CE, RE, S, WE2) with relay-based channel control. Operates within ±5A/±50V compliance range. Rack-mountable 9U design powered directly from potentiostat cell connector. Cost-effective alternative to stacked uMUX modules with integrated software control.
