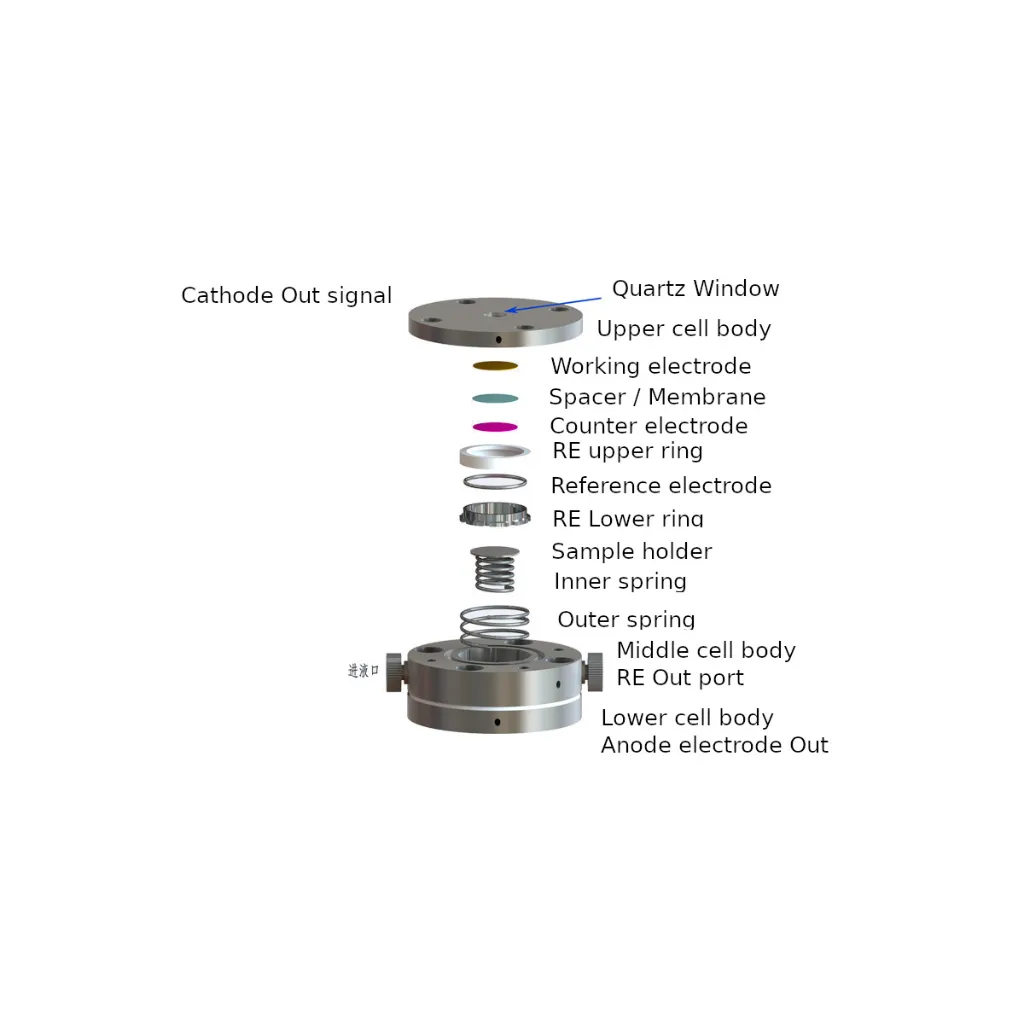

AIDA In situ Raman spectroscopy electrical test cell
The growth of lithium dendrites in the thickness direction of the lithium sheet during charge and discharge was observed. It needs to be observed under an optical microscope at 1000 times and above.
Cell Body Material: SS316
Sealing parts: perfluoro, fluorine rubber
Window material: sapphire
Dimensions:
- Cell Volume: 3ml
- Body size: Φ60*20mm
- Window Valid: Φ5（ Φ8optional）
- Sample distance window: 2mm
- Window thickness: 0.5mm
- Inner cavity diameter: Φ16
Suitable for installation sample size: Φ12-Φ16（Window valid: Φ5）、Φ15-Φ16（Window valid: Φ8）
1.718,12 €
1.718,12 €
(Impuesto excluido)
