Raman Handheld

Análisis Raman In Situ

Inspección Química de Bolsillo

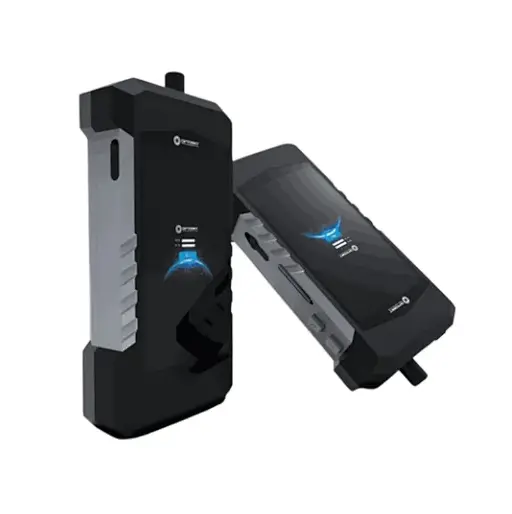

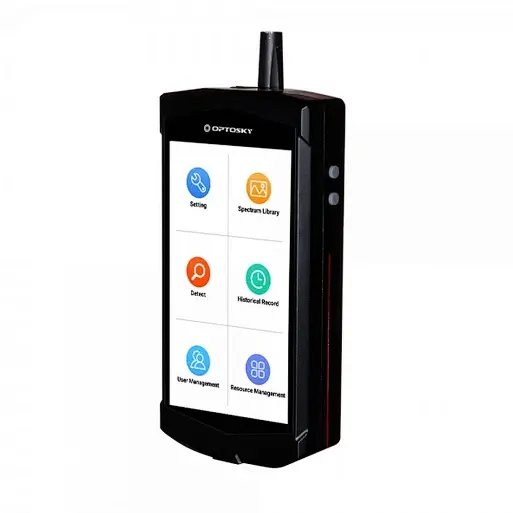

Optosky's ATR6500, ATR6600 and ATR6600pro models are handheld Raman analyzers designed for on-site chemical inspection, offering ultra-lightweight portability.

The ATR6500, weighing up to 450g, is available in two excitation wavelengths, while the ATR6600 is optimized for high fluorescence materials and ATR6600pro offers extended resolution.

Designed for rapid, non-destructive identification of substances, with features such as a touch screen, and robust designs suitable for various applications in the field.

Pide Presupuesto

Identificación no destructiva y rápida

Detección e identificación de sustancias de forma no destructiva y rápida con operación de un solo toque, lo que las hace ideales para uso en campo.

Pantalla táctil HD

Pantalla táctil capacitiva HD de 5.5" (resolución 1920x1080), proporcionando una interfaz fácil de usar para un funcionamiento fluido.

Bibliotecas espectrales completas

Bases de datos preinstaladas para diversas aplicaciones, como análisis farmacéutico, detección de explosivos y uso industrial.

Identificación y detección de mezclas

Identificación de sustancias, incluyendo la capacidad de detectar mezclas, mejorando sus capacidades analíticas.

Opciones de conectividad

Wi-Fi, Bluetooth, GPS y 4G, que permiten la transferencia de datos sin interrupciones y el seguimiento de ubicación preciso.

Diseño portátil y duradero

Construcción ligera (450g-1150g), larga duración de la batería y robustas clasificaciones IP67 o IP68 para protección contra el polvo y el agua.

Specifications & Datasheets

Model	ATR6500	ATR6600	ATR6600pro
Operative System	Android	Android	Android
Excitation Wavelength	785 ± 0.5nm	1064 ± 0.5nm	1064 ± 0.5nm
Wavenumber Range	200-4000 cm-1	200-2500 cm-1	200-2500 cm-1
Resolution	10 cm-1	8-12cm-1	8-15cm-1
Touch Screen	5.5inch，1920×1080，Multi-Touch	5.5", 1920×1080, Multi-point touch control	5.5", 1920×1080, Multi-point touch control
Detector	Hamamatsu CCD	TE cooled InGaAs	TE cooled InGaAs
Size	172×85×30 mm	220×110×45mm	220×110×45mm
Weight	450g	1150g	<900g
Interface	WIFI, USB Type-C, Bluetooth, GSM	WIFI, USB Type-C, Bluetooth, GSM	WIFI, USB Type-C, Bluetooth, GSM
Export Report	Report export pdf, txt including detect result, spectral info, camera pictures	Report export pdf, txt including detect result, spectral info, camera pictures	Report export pdf, txt including detect result, spectral info, camera pictures
Battery	Replaceable battery. Operation time >8h, Standby time >72 hrs	Replaceable battery. Operation time >6h, Standby time >72 hrs	Replaceable battery. Operation time >6h, Standby time >72 hrs
Charging Type	USB Type-C	USB Type-C	USB Type-C
Operating Temp.	-20 – 50 ℃	-20 – 50 ℃	-20 – 50 ℃
IP level	IP66	IP68	IP67
Camera	13 Mpx	13 Mpx	13 Mpx
Library	self-built library (>3000) & customizable	self-built library (>3000) & customizable	self-built library (>3000) & customizable

ATR6500 Datasheet

ATR6600 Datasheet

ATR6600 Pro Datasheet
