Battery Testing Cells
Special purpose test cells for battery applications
Boosting your Battery Materials Research
Battery cell testing is a critical phase in the battery production process, ensuring the safety, performance, and reliability of cells before they're assembled into modules and packs.
This comprehensive testing process involves various electrochemical techniques to evaluate internal chemical reactions, characterize performance, and understand cell degradation mechanisms.
Our advanced testing solutions provide the precision, automation, and data analysis capabilities needed to optimize battery performance while maintaining cost-effectiveness in high-volume production environments
Battery Test Cells Line Up

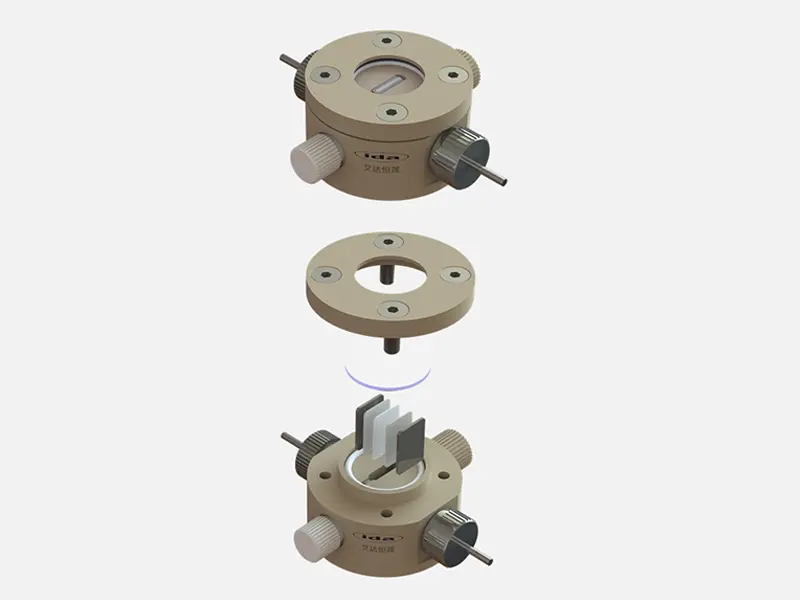

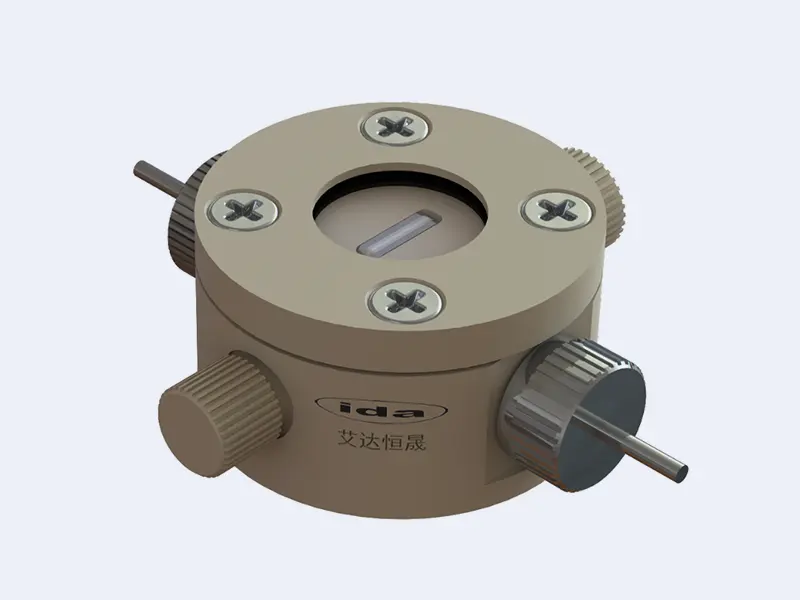

In-situ Imaging Battery Test Cell E001
Features:
- The growth of lithium dendrites in the thickness direction of the lithium sheet during charge and discharge can be observed.
- It needs to be observed under an optical microscope at 1000 times and above
Specifications:
- Pool body material: PEEK
- Window material: Quartz
- Positive and negative pole size 10*14mm
Part | Material |
Pool Body Material | Peek |
Window Material | Quartz |

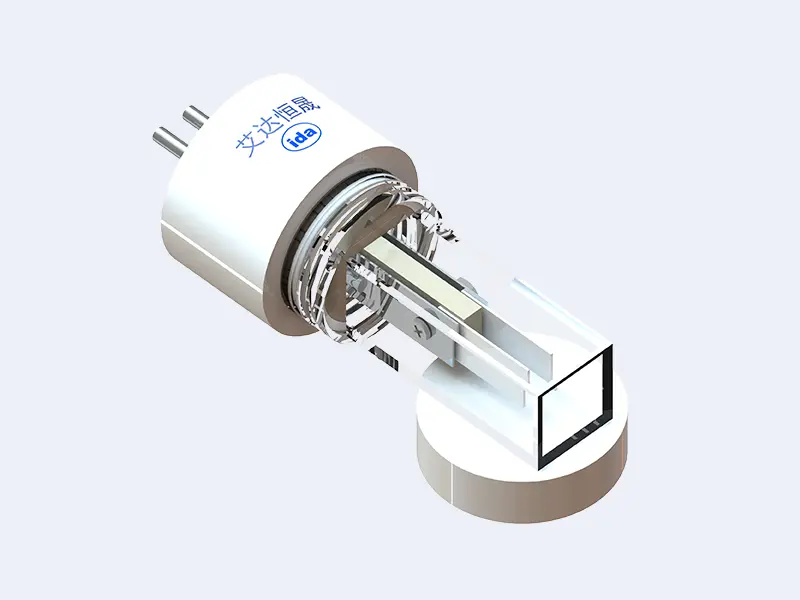

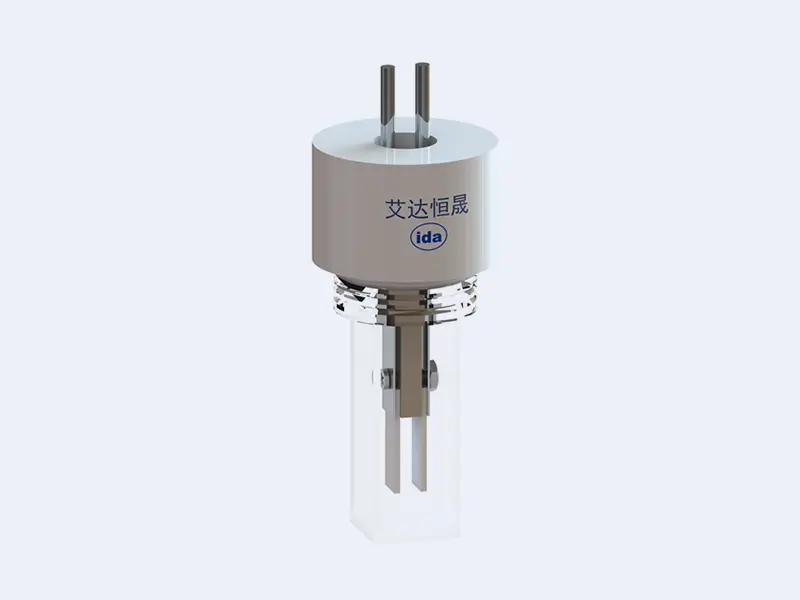

Battery charge and discharge observation pool E003
Features:
- Can be used in the optical microscope, the battery charge and discharge process observation
Specifications:
- Full quartz (produced by fusion method). PEEK inner core stainless steel tablet screw (material can be customized).
- Teflon cover
- Quartz cell size: 12.5 (long) * 12.5 (wide) * 52mm (high, including thread height 18mm)
- Positive and negative pole spacing 3mm
3 Electrodes Battery test cell E200
Features:
- Suitable for battery charging and discharging AC impedance experiments
- Can use three electrode, two electrode or gel experiment
- Four fluorine coating is conducive to insulation, anti-corrosion
- The unique three-electrode system is conducive to the analysis of electrode materials.
- Use less solution, constant pressure, good reproducibility
- Fully sealed device, easy to disassemble and clean
Specifications:
- Maximum diameter P58mm, height 49mm
- Positive and negative separator ≤ p16mm
- Reference is lithium wire, length ≥ 10mm
Uses:
- Lithium battery cathode, anode, diaphragm performance test
- AC impedance
- Super capacitor

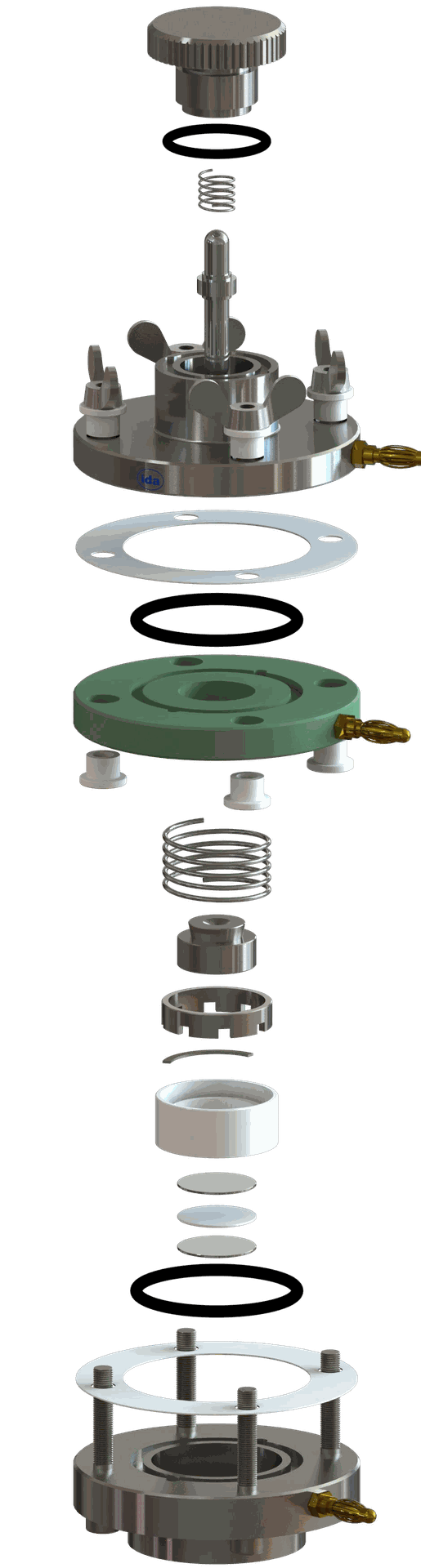

Part No. | Description |
26 | Sealing screw |
25 | Sealing Ring |
24 | Mechanical Spring |
23 | Thimble |
22 | Nut |
21 | Teflon Sleeve |
20 | Upper Cistern Body |
19 | Positive Interface banana |
18 | Shim |
17 | Sealing Ring |
16 | Middle Cistern Body |
15 | Reference Interface |
14 | Teflon Sleeve (insulation) |
13 | Mechanical Spring |
12 | Briquette |
11 | Compression Ring |
10 | Reference Wire (Lithium Wire) |
9 | Reference Tank |
8 | Positive Electrode |
7 | Diaphragm |
6 | Negative Electrode |
5 | Sealing Ring |
4 | Shim |
3 | Screw bolt |
2 | Lower Cistern Body |
1 | Negative Interface |

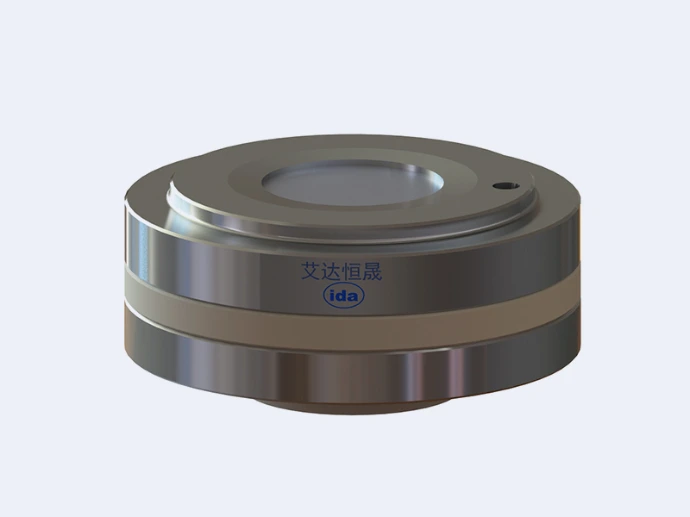

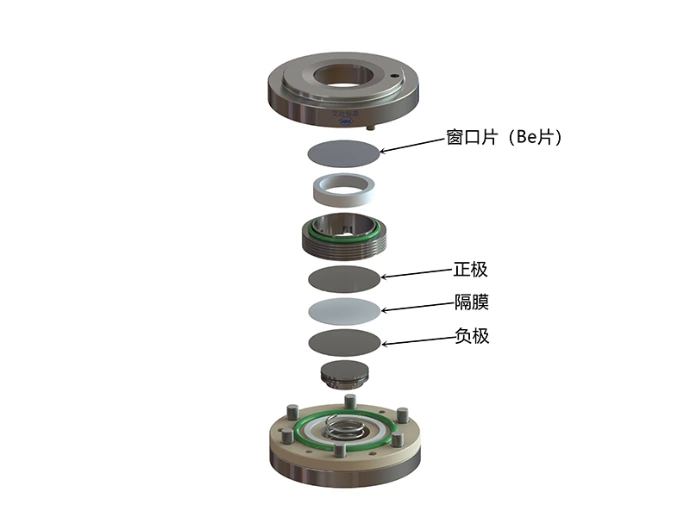

In Situ XRD Battery test cell
Features:
- Can carry out normal charge and discharge experiment
- In-situ XRD measurements of electrode materials for batteries during charging and discharging
- Suitable for Bruker D2X-ray diffractometer
- Upper cover stainless steel, lower cover PEEK, good insulation
- Fully sealed device, easy sample loading and unloading, parts can be disassembled and cleaned
- Customizable lithium empty XRD in-situ cell
