Hyperspectral Systems matching your application
Hyperspectral Imaging Systems (HSI) covering the entire VIS-NIR and SWIR spectrum from 400 to 2500 nm. Our product line includes handheld, push broom, drone-mounted, and built-in scanning systems to meet your application requirements. Explore our automatic conveyor systems for efficient sample processing, optimized light sources and microscope-compatible models.
Technical Design
Transmission Grating technology with 60% transmission efficiency and only 0.5% stray light. Wide range of accessories and SDK development support.
Image Quality
High spatial resolution of up to 1920x1920 px with a pixel size of 5.86μm and SNR >600:1. High Efficiency CMOS and InGaAs sensors.
Spectral Range
Select your model for NIR (400-700 nm), VNIR (400-1000 nm) or SWIR (up to 2500 nm) wavelengths with a maximun spectral resolution <2.5 nm
Hyperspectral Imaging Systems
FSIQ - Portable Hyperspectral Camera
The FSIQ Family Portable Hyperspectral Camera delivers
professional-grade spectral imaging in a compact, user-friendly design.
This advanced imaging system captures incredibly detailed spectral data
across visible and near-infrared wavelengths
Discover FSIQ Models
Specifications:
- Wavelength Range: 400-1700nm (visible to short wave infrared)
- Spectral Resolution: 2.5nm FWHM
- Spatial Resolution: Up to 1920 x 1920 px
- Spectral Channels: Up to 1200
- 5-inch touchscreen display (1280 x 720 resolution)
- Internal sweep scanning technology
Media
FS1X Series - Line Scan Cameras for Every Purpose
The FS1X Series offers a comprehensive solution for every
application. Select your standard cameras in visible, visible near
infrared, or short wave infrared ranges, with options up to 2500nm.
Whether you need high-resolution SWIR imaging or high-frequency capture
for industrial sorting, these cameras deliver exceptional performance.
Easy integration with CHNSpec Conveying systems iand
illumination solutions.
Discover FS1X-Series
Specifications:
- Standard Models: 400-1700nm with 2.5nm resolution, up to 1200 channels.
- Professional SWIR: 900-1700nm with 8nm resolution, 1024 channels. Up to 1800 fps.
-
Industrial SWIR:
900-1700nm with 6nm resolution, 512 channels, 1480 fps.
Media
Note: Line Scan cameras require a conveyor system for operation but offer the highest resolution and throughput for continuous inspection applications.

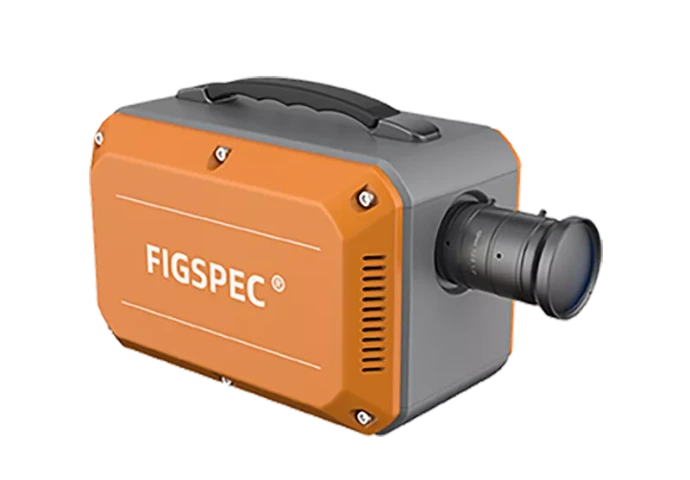

FS2X Series - Built-in Scanning System Models
The FS2X Series features advanced transmission grating technology
with built-in scanning mechanisms, eliminating the need for external
scanning devices. These cameras integrate seamlessly with C-Mount lenses
or microscopes, offering simplified operation without complex focusing
requirements.
Discover FS2X-Series
Specifications:
- VIS-NIR Models: 400-1000nm with 2.5nm resolution, up to 1200 channels. Spatial resolution of 1920x1920 px.
- SWIR Models: 900-1700nm with 8nm resolution, up to 254 channels. Spatial resolution of 320x320 px
- FS-27 Professional SWIR: 900-1700nm with 6.5nm resolution,1024 channels. Spatial resolution of 1280x1280 px
Media
UAV Series - Unmanned Aerial Vehicle HSI solutions
Engineered for the DJI M350/M300RTK platforms. These systems
combine ultra-high-speed spectral scanning with exceptional
signal-to-noise ratios, delivering stable and precise spectral image
acquisition in flight conditions.
Each system includes a complete package of high-stability
mounting, data processing units, wireless transmission, GPS-RTK
navigation, and ground control station software.
Discover UAV-Series
Specifications:
- FS-60 UAV Standard System: 400-1000nm range, 2.5nm resolution, 1920 spatial pixels, 128Hz full band/3300Hz ROI, IP45 rated, 1.15kg, integrated DJI SDK.
- FS-60 UCR LiDAR Combo: Dual 400-1700nm hyperspectral + 300m LiDAR range, built-in control system, high-precision navigation, synchronized measurement.
- FS-50 Multispectral Series: 30-180 spectral channels, 2K resolution, 12-bit global shutter, 512GB storage, real-time preview, DJI X-Port compatible.
Media
PTZ Series - Hyperspectral Monitoring System
Transform your fixed-point monitoring capabilities with our
advanced PTZ hyperspectral system, designed for continuous environmental
surveillance and analysis. This integrated solution combines precision
hyperspectral imaging with full-range pan-tilt-zoom functionality,
enabling comprehensive coverage of large areas from a fixed installation
point. The system delivers real-time monitoring capabilities with
automated scanning sequences and network connectivity, making it ideal
for long-term environmental observation.
Discover PTZ-Series
Specifications:
- 390-1010nm range, 2.5nm resolution,
- 1200 spectral channels,
- 360° horizontal rotation, ±90° vertical movement, network-enabled operation.
Our Expertise
Our team of experts is committed to providing you with exceptional support and guidance in hyperspectral imaging. We understand that selecting the right imaging equipment and spectral analysis solutions can be challenging, and that's why we're here to help you make informed choices.
At SFTec we also specialize in providing custom hyperspectral
imaging solutions tailored to your unique requirements. Whether it's a
specialized wavelength range, a non-standard imaging configuration, or a
particular application in mind, our experts will work closely with you
to bring your ideas to life.
If you have questions, need a custom imaging solution, or just want to discuss your hyperspectral imaging needs, don't hesitate to get in touch with us. Our team is eager to assist you in your quest for precise spectral data acquisition and analysis.
