Hydrogen Technology Solutions
Each system is engineered for precision, reliability, and ease of use, providing researchers with the tools they need. Standard configurations cover power ranges from 100 W to 30 kW and a variety of customization options based are available.
On-site installation
and maintenance
Optimized
delivery times
Python
scripting
Robust, reliable & customizable equipment for Hydrogen technologies
Complete customizable AEM /PEM Water Electrolizer Testing Stations

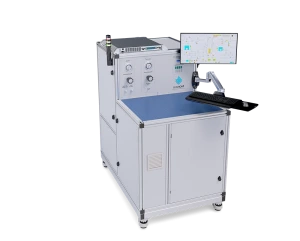

ETS-1 Water Electrolyzer Test Station
Robust and reliable testing of electrolyzsers (up to 1kW). Key features
- User-Friendly manual operation with P&ID visualization or automated operation using in-house developed Python library
- Ability to perform a wide range of tests, including JRC standard performance curve, H2 crossover, hydraulic curve, and many more
- Streamlined standardization for rapid deployment
ETS-10 Water Electrolyzer Test Station
Testing of electrolyzsers (up to 50kW). Key features
- User-Friendly manual operation with P&ID visualization or automated operation using in-house developed Python library
- Ability to perform a wide range of tests, including JRC standard performance curve, H2 crossover, hydraulic curve, and many more
- Streamlined standardization for rapid deployment
Fuel Cell Testing Stations up to 50kW

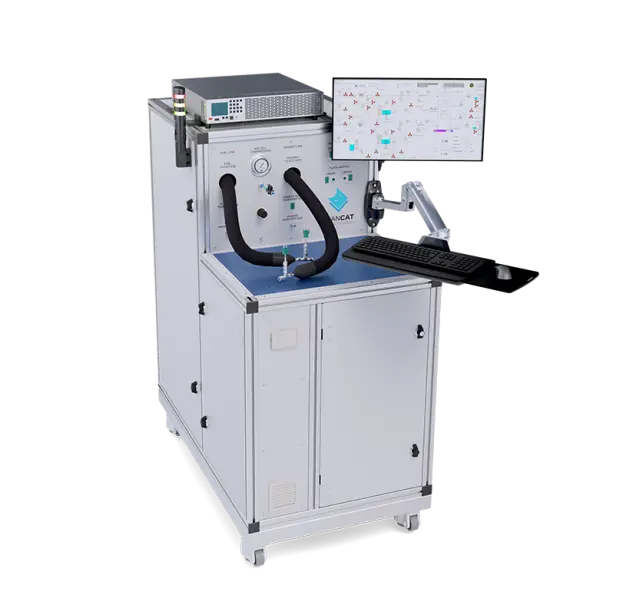

Fuel Cell Test Station up to 100W
Testing of single cells or short stacks (up to 100W) for the research and development of large area fuel cells. Benchmarking of fuel cells and short stacks thanks to extensive scripting possibilities.
User-Friendly manual operation with P&ID visualization or automated operation using in-house developed Python library
Discover LEANCAT PTS-1
User-Friendly manual operation with P&ID visualization or automated operation using in-house developed Python library
Fuel Cell Test Station up to 1kW
Ideally suited for research and development of large-area single cells or verification of stack design on short-stack level (up to 1kW). Well-defined and repeatable conditions of Leancat PTS-10 enable benchmarking of fuel cells also thanks to extensive scripting possibilities.
Robust system based on industrial PLC with data logging into SQL database, automatic control of flow rate, humidity, temperature and back pressure individually for anode and cathode lines. Cell/stack temperature control with liquid cooling circuit. Safety features for fully automated operation. Available with several electronic loads and potentiostats.
Discover LEANCAT PTS-10Robust system based on industrial PLC with data logging into SQL database, automatic control of flow rate, humidity, temperature and back pressure individually for anode and cathode lines. Cell/stack temperature control with liquid cooling circuit. Safety features for fully automated operation. Available with several electronic loads and potentiostats.
Fuel Cell Test Station up to 10kW
Ideally suited for verification of stack design on short-stack level or scale up to full-stack level.
Suitable for low-temperature PEM fuel cells. Convenient testing of short or full stacks. Automatic control of flow rate, humidity, temperature and back pressure individually for anode and cathode lines. Variety of electronic loads available. Stack temperature control with liquid cooling circuit. Robust system based on industrial PLC with data logging into SQL database. Safety features for fully automated operation. CE certificate of conformity
Fuel Cell Test Station up to 50kW
Ideally suited for verification of stack design on short-stack level or scale up to full-stack level.
Suitable for low-temperature PEM fuel cells. Convenient testing of short or full stacks. Automatic control of flow rate, humidity, temperature and back pressure individually for anode and cathode lines. Variety of water-cooled or regenerative electronic loads available. Stack temperature control with liquid cooling circuit. Robust system based on industrial PLC with data logging into SQL database. Safety features for fully automated operation
Laboratory Electrolyser Cells and Cell Stacks up to 5 cells
Laboratory Electrolyser Cell (PEM/AEM)
PEM/AEM Laboratory testing hardware for single electrolyser cell 5 cm2, used in the research and development of electrolysers.
- Test hardware for MEA and porous layers
- Suitable for PEM or AEM electrolysers
- Possibility to pressurize up to 50 bar
- Simple assembly and durable construction
Laboratory Electrolyser Stacks (PEM/AEM)
PEM/AEM test hardware for multi-cell testing (25cm2), used in the research and development of fuel cells and electrolysers.
- Test hardware for multi-cell testing
- Testing up to 5 cells at the same time.
- Suitable for PEM or AEM electrolysers
- Possibility to pressurize up to 50 bar
- Simple assembly and durable construction
Air-Pressed Test Cell
Compression hardware for single-cell testing (5 – 50 cm2)
- Compression hardware for single-cell testing
- Suitable for low-temperature PEM fuel cells or electrolysers
- Compression system uses pressurized gas
- Fully controlled tightening force
- Uniform force distribution
PEM / AEM Laboratory Electrolyser Cells and Cell Stacks up to 5 cells

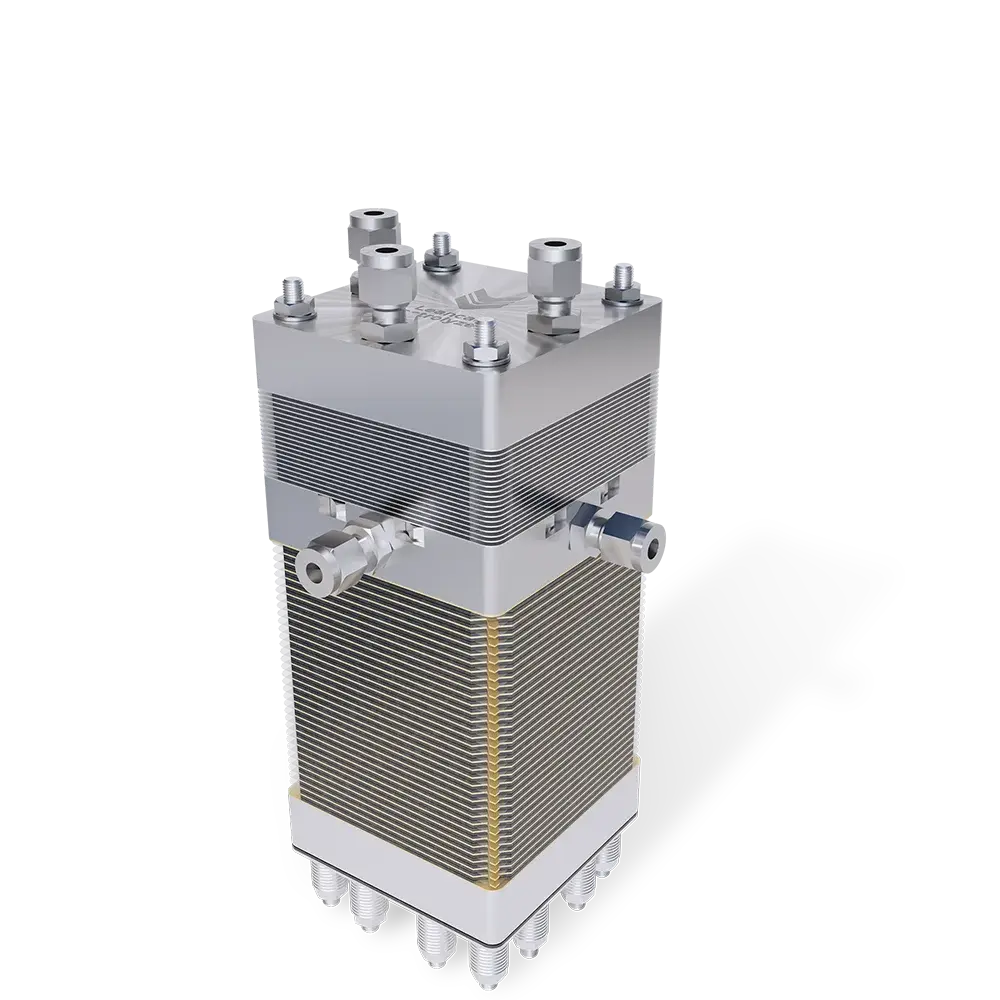

Water Electrolyzer Stacks with heat exchange (up to 5kW)
With its high power density, efficiency and reliability, LCWE-25-HEX is
perfectly suited for OEMs and integrators aiming at developing their own
solution for the production of green hydrogen. Advanced PEM water
electrolyzer stack, produces hydrogen at high pressure (cathode),
low-pressure oxygen outlet (anode). Designed for integration in H2
systems. Power range up to 5 kW. Integrated heat exchanger for stack cooling.
Discover LEANCAT LEC-5

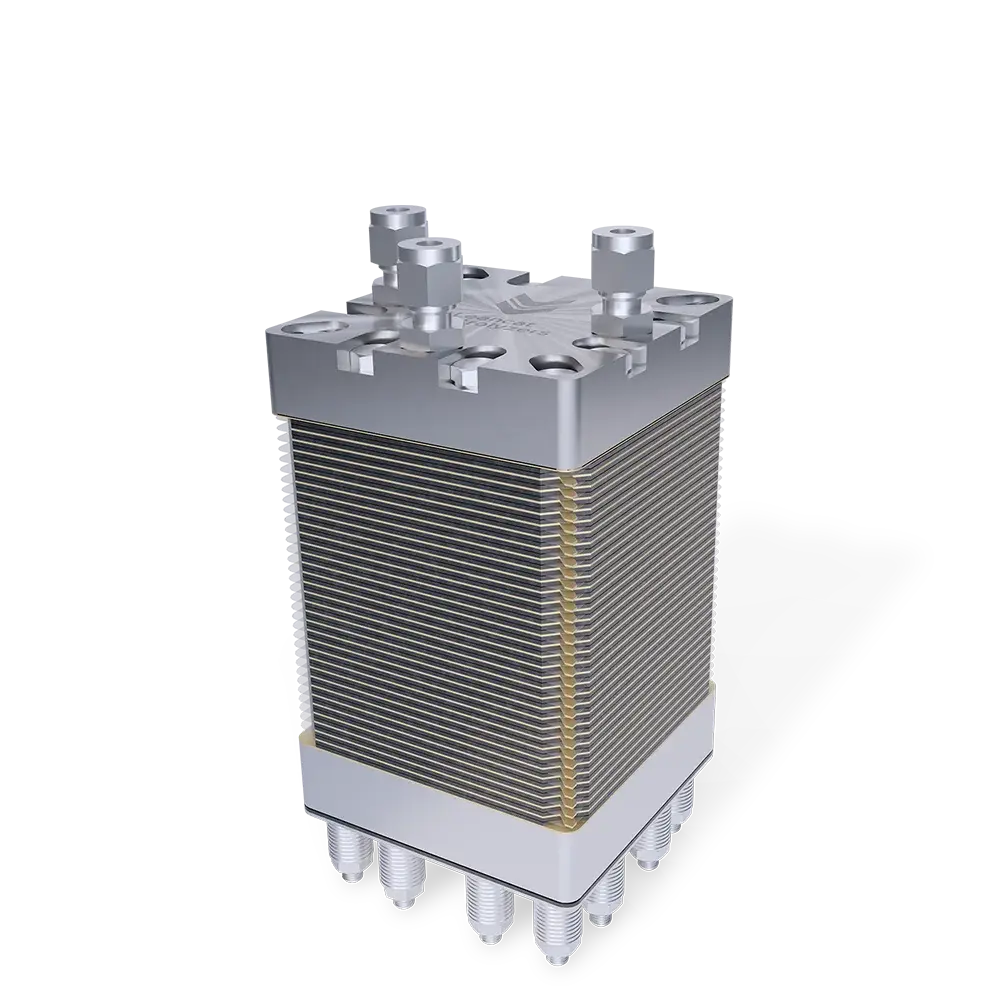

Water Electrolyzer Stacks (up to 5kW)
With its high power density, efficiency and reliability, LCWE-25-HEX is
perfectly suited for OEMs and integrators aiming at developing their own
solution for the production of green hydrogen. Advanced PEM water
electrolyzer stack, produces hydrogen at high pressure (cathode),
low-pressure oxygen outlet (anode). Designed for integration in H2
systems. Power range up to 5 kW
Discover LEANCAT LES
High power potentiostats/galvanostats with integrated EIS
Integrated Potentiostat + Booster for High-Power Applications
Specialized line of potentiostats tailored for high-power applications (up to ±40A and up to ±40V). It combines the functionalities of a potentiostat and a booster within a single unit ensuring optimal performance, such as switching through all current ranges with full resolution at low and high power, high bandwidth to facilitate impedance measurements at high power, etc.
Discover IVIUM XP family
Electrolysis and Hydrogen Generation
The HE80 stands out as an electrolyser with integrated FRA/EIS capabilities. Specifically designed for applications like electrolysers/hydrogen generation, battery charging, and electrodeposition, the HE80 offers a voltage range of ±20V and a current range up to +80A. With its unique design, the HE80 is particularly suitable for electrodeposition or hydrogen generation, offering precise control and efficient operation for testing electrolyzer stacks
Discover IVIUM HE80
High‑Performance Porous Metal Materials for Advanced Electrochemical Research
Nickel Foams and Meshes for Electrochemistry
Nickel foams and meshes provide a highly porous, conductive scaffold ideal for electrochemical research, from fundamental studies to prototype development. Their controlled pore size, thickness, and geometry allow researchers to tune active surface area, mass transport, and current distribution, enabling systematic studies in batteries, supercapacitors, electrocatalysis, and corrosion. These substrates are particularly useful as model electrodes or current collectors where reproducibility and well‑defined morphology are critical
Nickel‑based functional and composite foams
Beyond bare nickel, functionalized foams incorporate catalytic, conductive, or protective layers (metal oxides, noble metals, carbon materials, polymers) to create advanced architectures for materials screening. This family is well suited for testing new electrocatalysts for hydrogen or oxygen reactions, reference electrodes for EIS, or sensing layers under realistic 3D geometries. Researchers can use these composite foams to bridge the gap between thin‑film tests and application‑relevant, high–surface‑area structures.
Titanium and alternative metal foams
Titanium and other corrosion‑resistant metal foams extend experimental capabilities to aggressive environments where nickel is not suitable, such as strongly oxidizing, chloride‑rich, or high‑temperature conditions. Their combination of mechanical robustness, chemical stability, and open porosity makes them attractive for long‑term durability and corrosion studies, biocompatibility tests, and hydrogen technologies operating in demanding media. They are also valuable as neutral porous supports when the substrate must not interfere with the chemistry under investigation.
Request for a quotation
Request for a quotation
Porous structures for hydrogen and energy systems
Metal foams and meshes specifically tailored as electrodes, gas diffusion layers, and porous supports in hydrogen production, fuel cells, and other electrochemical energy devices. Researchers can explore the influence of porosity, tortuosity, and thickness on efficiency, overpotentials, and bubble management in electrolyzers, or on water and gas management in fuel cells. These materials align naturally with test rigs, potentiostats, and spectroscopic tools, facilitating integrated studies that couple structure, performance, and degradation.
LEANCAT Control Software
- At the core of LEANCAT control systems, there is an industrial PC from Beckhoff running TwinCAT 3 runtime.
- On request, access to the TwinCAT code can be provided enabling you to modify the PLC program.
- Measured data are safely stored in an SQL database. Logging of data is optimized both to save storage space and to reduce response time when working with large data sets of time series.
Depending on your preferences, you can interact with LEANCAT test stations in one or more of the following ways:
Graphical user interface (GUI)
- A simplified P&I diagram is used to show process values and controls in an interactive visualization
- Users can create their own customizable dashboard with widgets such as plots, data tables or gauges for measured values
Python scripting for the setup of automated tests
- Python is a widely used open source programming language
- Using this interface both test setup and post-processing of feasured data can be easily integrated in the testing process
- OPC UA server for high-level integration
Custom integration services for testing stations.
Are you an state-of-the-art researcher designing unique experiments?
Or perhaps an industry professional seeking to include a testing station into your production or QC/QA system with customized software control?
Our integration services cater to those in need of custom interfaces for testing stations in quality control environments or those searching for the ultimate flexibility in instruments control.
Looking for the right measurement solution for your application?
Whether you need advanced instrumentation, tailored integration or support with complex data analysis, our team can help you identify the most suitable approach for your technical requirements.
