Innovative Electrochemical Instrumentation
Ivium Technologies stands at the forefront of electrochemical instrumentation, offering potentiostat/galvanostat devices renowned for their versatility and high performance across various research domains. Whether it's pioneering electrochemistry, advancing battery research, or conducting in-depth corrosion studies, Ivium's equipment is engineered to deliver unparalleled accuracy and reliability.
Extensive Range of Applications
From ultra low-current experiments to demanding high-powered tests, Ivium offers a wide selection of current and voltage models and boosters
Integrated Impedance Analysis (EIS)
Integrated independent impedance / EIS capabilities in every channel, for simultaneous measurements without multiplexing.
High resolution
(24 bits)
24 bits resolution High-End instruments with reduced noise, enhanced accuracy and higher data acquisition rates.
The right instrument for your needs
Ivium's lineup ranges from compact, portable potentiostats to the more sophisticated IviumStat2 and Ivium-n-Stat systems. This diversity makes Ivium instruments ideal for a broad spectrum of applications, accommodating the nuanced demands of modern electrochemical research.
Portable and Handheld devices with integrated EIS
24 bits High resolution USB powered potentiostat with integrated EIS
The CompactStat2 is a high end portable potentiostat that can be powered from the USB port of a laptop or PC without additional power supply. With its small footprint (<600 gram) and low power consumption, the CompactStat2 provides a truly mobile electrochemical measurement station that is ideal for use both in the lab and in the field. Its exceptionally high measurement resolution of 24bits gives it a unique level of measurement and control.
Handheld Potentiostat with integrated EIS
The pocketSTAT is a complete electrochemical measurement instrument with the size of a smart phone. The pocketSTAT is powered via USB and can be controlled from any Windows PC/tablet/laptop. It has been specifically designed for (field) measurements such as corrosion evaluation and analytical chemistry, but suits any low current electrochemical application: field measurements, corrosion, coating testing, analysis, use in a glove box/fume hood,...
Affordable Standalone or Add-on Potentiostat
Ivium has introduced a new, cost-effective portable Potentiostat/Galvanostat for general Electrochemistry, Corrosion, Sensors, Dielectrics, Batteries, (Bio-) Fuel Cells, and mobile applications. This addition to the Ivium lineup offers a budget-friendly yet versatile solution for a wide range of electrochemical research needs.
Smart introduction to electrochemical instrumentation
The demoStat is a small USB-powered potentiostat/galvanostat/ZRA with integrated FRA/EIS. It can perform all conventional electrochemical techniques, including EIS. It is intended as a low-cost investment for feasibility studies and demonstration, but is also perfectly suited for training and education. It is controlled via a USB connection from any netbook, laptop or PC that is Windows operated.
All round Electrochemical Analyzers with integrated EIS
Robust potentiostat with integrated EIS
The Vertex series is Ivium line of all-round entry level potentiostat / galvanostat / ZRA instruments with optional Impedance Analyser for EIS. The Vertex family has been specifically designed to be affordable and robust. The wide range of voltage and current capability offers a solution for all applications, including educational, basic electrochemistry, high current (battery) testing, electrolyser research and development
Discover IVIUM Vertex
Low cost solution with optional Bipotentiostat

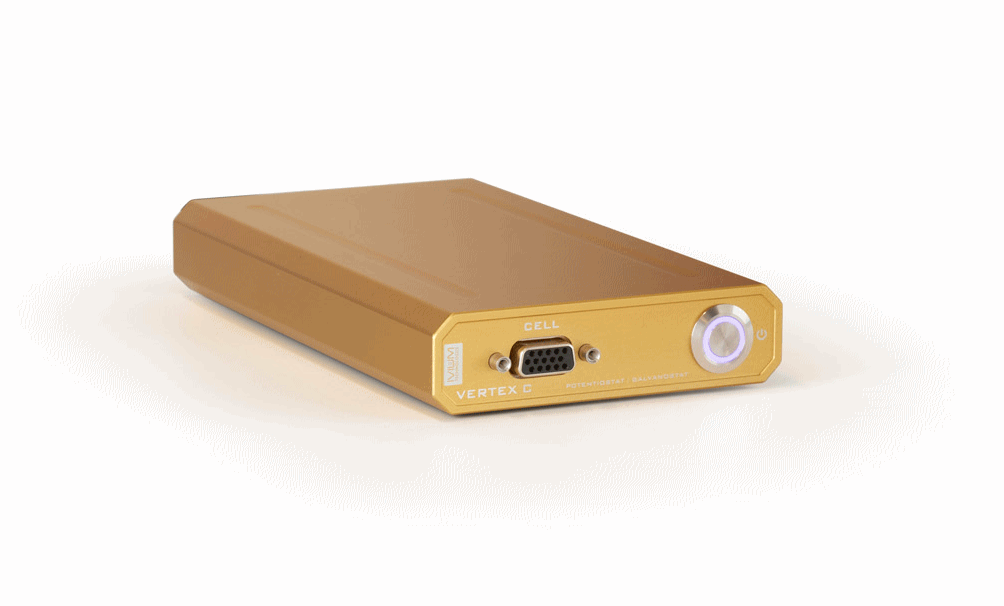

The Vertex.C is an all-round potentiostat/galvanostat/ZRA with FRA/EIS (not available as a DC-only instrument). Its low cost and wide specifications result in a versatile single-channel instrument. Available with bipotentiostat or devanastat integrated option
Discover IVIUM Vertex C

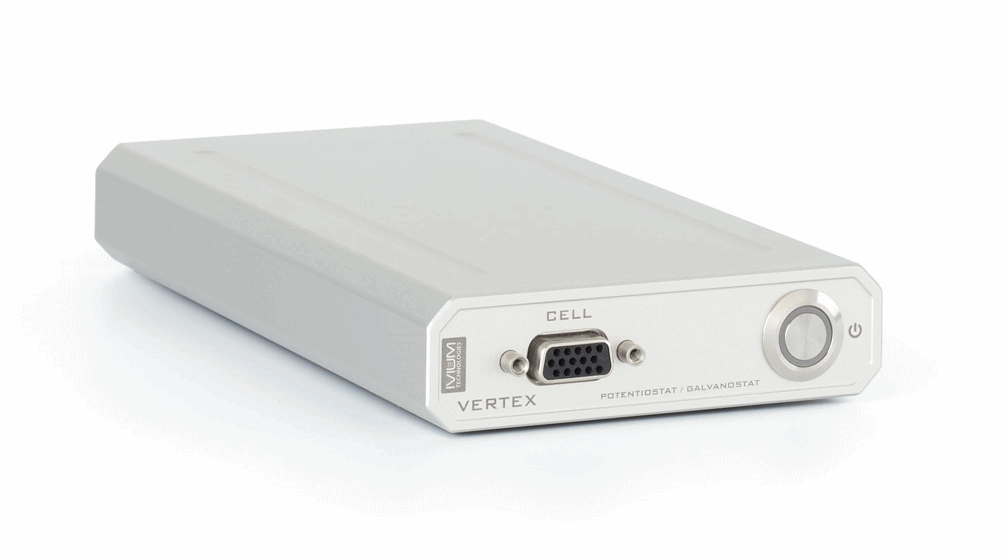

All-round low cost Potentiostat with integrated EIS
The Vertex.One is an all-round potentiostat/galvanostat/ZRA with optional FRA/EIS. Its low cost and wide specifications result in a versatile single-channel instrument. The Vertex.One is capable of all standard electrochemical techniques and includes a complete suite of IviumSoft control and data processing software (for Windows based PCs).
Discover IVIUM Vertex One24 bit resolution Electrochemical Analyzers
Outstanting precision, sensitivity, and versatility.
The IviumStat2 is the new version of the high end high-power potentiostat with the exceptional 24bit high resolution. The instrument is well suited for applications that require a wide dynamic range. The instrument has high power and a built-in high performance frequency response analyzer for EIS measurements from 10µHz to 8MHz, and is compatible with our complete range of modules and options.
Discover IVIUM IviumStat2

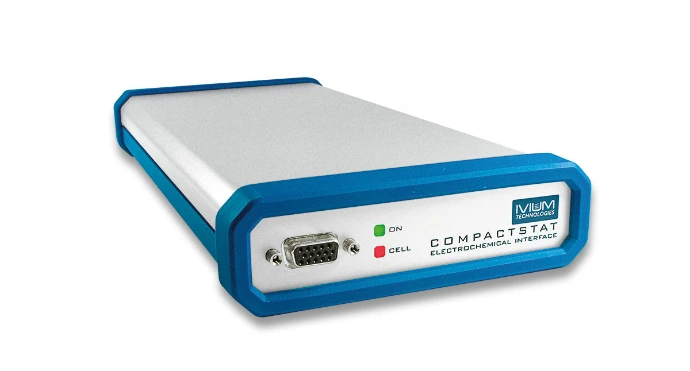

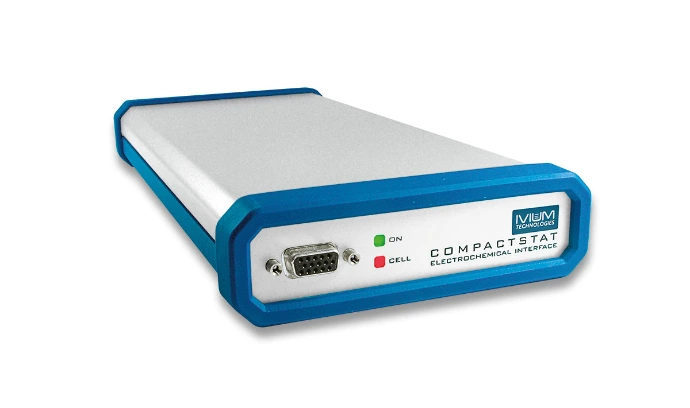

High resolution USB powered potentiostat with integrated EIS
The compactSTATis a high end portable potentiostat that can be powered from the USB port of a laptop or PC without additional power supply. With its small footprint (<600 gram) and low power consumption, the CompactStat provides a truly mobile electrochemical measurement station that is ideal for use both in the lab and in the field.
Its exceptionally high measurement resolution of 24 bits gives it a uniquelevel of measurement and control.
Discover IVIUM CompactStat2
Why 24-bits resolution is important?
The resolution of a potentiostat refers to its ability to accurately measure and control small voltage or current changes.
A 24-bit resolution Ivium potentiostat offers several benefits in electrochemical measurements and experiments compared to potentiostats with lower resolutions.
Higher precision
A 24-bit resolution allows for extremely precise voltage and current measurements. This is particularly useful when working with low-current electrochemical processes or when studying subtle electrochemical phenomena.
Enhanced Sensitivity
The ability to resolve smaller changes in potential or current allows researchers to study electrochemical processes with higher sensitivity. This is essential in various applications, including sensor development, corrosion studies, and bioelectrochemistry.
Compatibility with Advanced Techniques
Advanced electrochemical techniques, such as impedance spectroscopy and fast scan voltammetry, often require high-resolution measurements for accurate results. A 24-bit potentiostat is crucial for using these techniques.
Better Detection of Small Changes
With more bits, the potentiostat can detect and respond to very small changes in voltage or current. This is critical in applications where the electrochemical reactions are weak or subtle.
Wider Dynamic Range
A 24-bit resolution potentiostat can handle a wide range of currents and potentials, making it versatile for a broad spectrum of electrochemical experiments. This versatility is crucial in research, where the nature of the electrochemical process may vary significantly.
Improved Signal-to-Noise Ratio
Higher resolution potentiostats can distinguish between the signal (the electrochemical response you want to measure) and noise (unwanted interference or background currents) more effectively. This results in cleaner data and more accurate measurements.
Reduced Error and Drift
Higher-resolution measurements help reduce measurement errors and drift, which can occur in low-level electrochemical experiments over time. This is particularly important for long-term experiments and studies involving small, slow, or gradual changes in electrochemical behavior.
Flexibility
Higher-resolution potentiostats can adapt to various experimental setups and electrochemical systems, making them suitable for diverse research needs and applications.
High power potentiostats with integrated EIS

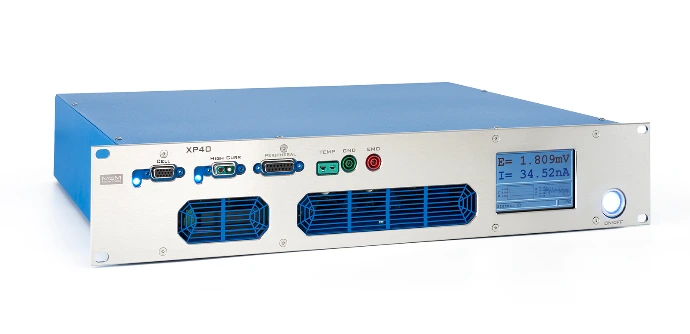

Integrated Potentiostat + Booster for High-Power Applications
Specialized line of potentiostats tailored for high-power applications (up to 40A and up to 40V). It combines the functionalities of a potentiostat and a booster within a single unit ensuring optimal performance, such as switching through all current ranges with full resolution at low and high power, high bandwidth to facilitate impedance measurements at high power, etc.
Discover IVIUM XP
Electrolysis and Hydrogen Generation

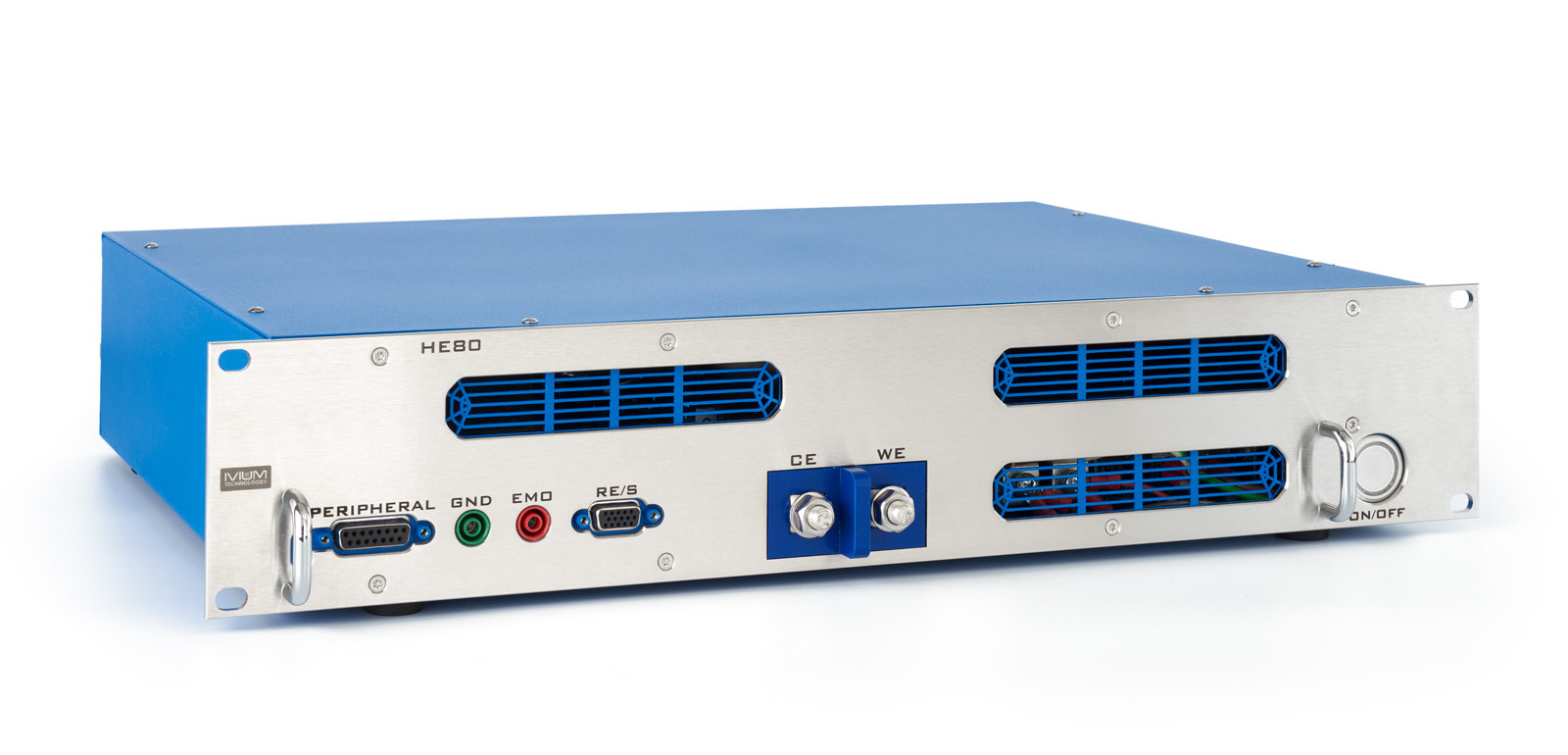

The HE80 stands out as an electrolyser with integrated FRA/EIS capabilities. Specifically designed for applications like electrolysers/hydrogen generation, battery charging, and electrodeposition, the HE80 offers a voltage range of ±20V and a current range up to ±80A. With its unique design, the HE80 is particularly suitable for electrodeposition or hydrogen generation, offering precise control and efficient operation for testing electrolyzer stacks

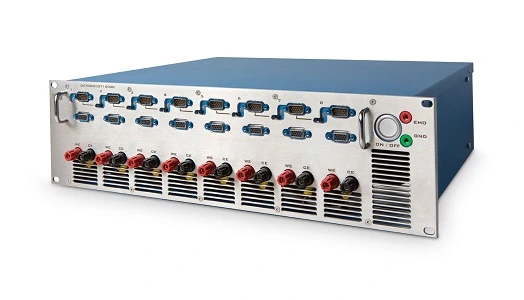

Multichannel Booster
The OctoBoost16000 is a multiple channel booster that can boost the current output of your existing Ivium potentiostat to 16 A. Adjacent channels can also be combined to further boost the current output reaching a maximum of 128A, if desired. The OctoBoost can be used with a multiple channel instrument like the OctoStat or Ivium-N-Stat or with multiple single channel instruments.
Discover IVIUM OctoBoost16000Multichannel potentiostats with integrated EIS in each channel
Customizable High-End Analyzers for Precision and Throughput
The Ivium-n-Stat multiple-channel potentiostat/galvanostat exemplifies versatility, allowing you to tailor your system to your specific needs. Choose from an extensive array of modules to create a customized system that offers multichannel throughput without compromising single-channel accuracy.
This fully modular instrument is designed for a broad spectrum of applications, including battery/fuel cell testing, electrode development, biotechnology, and other advanced electrochemical research applications.
Discover Ivium-n-Stat
High-Performance multichannel with integrated EIS
The OctoStat stands out for its application in scenarios where multiple cells are operated in parallel over extended periods. This makes it particularly suited for battery/fuel cell testing, electrode development, biotechnology, and corrosion studies. Its design is focused on ensuring long-term, reliable operation for these demanding applications.
Electrochemical Analyzers for Battery Testing
High-Performance multichannel with integrated EIS
The OctoStat stands out for its application in scenarios where multiple cells are operated in parallel over extended periods. This makes it particularly suited for battery/fuel cell testing, electrode development, biotechnology, and corrosion studies. Its design is focused on ensuring long-term, reliable operation for these demanding applications.
High-Volume, High-Channel Battery Testing
IviCycle is tailored to be your go-to equipment for battery testing requiring a high number of channels. It provides a low-cost-per-channel testing solution, ideal for large-scale channel operations, along with extensive data storage capabilities, making it an invaluable tool for battery research and development.
Modules and accessories to speed up your research

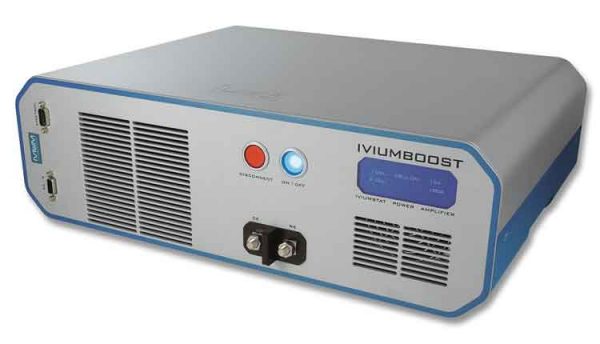

High Power 100A Booster
Stackable Power booster to increase the power of the IVIUM potentiostat to ±100A and ±12V. The booster is connected in front of the P/G in-line with the cell cable. Operation is fully integrated in the IviumSoft.
Multi-channel Booster
High Voltage up to 100V
Power booster to increase the power of the IVIUM potentiostat to ±100V and ±600mA. The booster is connected in front of the P/G in-line with the cell cable. The operation is fully integrated in the IviumSoft.

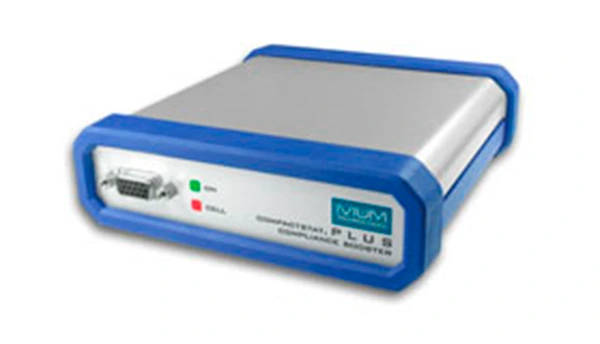

External CompactStat Boosters
uDataSecure
Secure your research with compact and powerful data storage, offering PC-independent backup for up to 1 billion datapoints. Connectivity through LAN, USB, or remote access, ensuring your experiments continue in any laboratory settings.

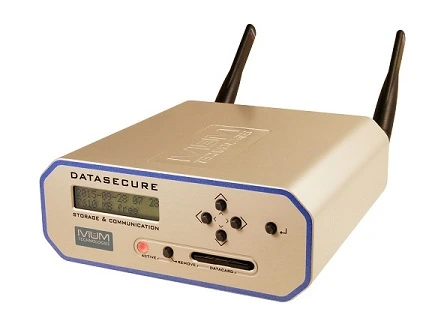

Datasecure
iBlue

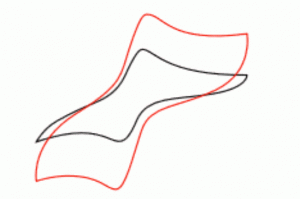

Bipotentiostat Internal upgrade
A bipotentiostat (BiStat) is an option that enables a second working electrode (WE2) with a programmable potential offset with respect to the reference electrode (RE) or the first working electrode (WE1). used for various applications, including rotating ring disc electrode (RRDE) measurements.
External Bipotentiostat module
LinScan internal upgrade

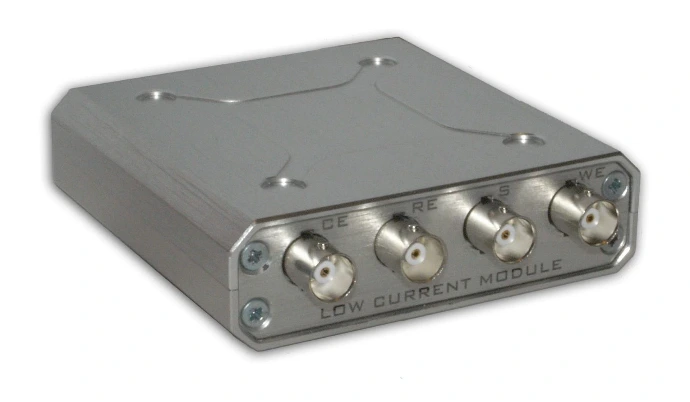

Low current (LC) module
The Low Current module (LC module) adds 3 real current ranges below the existing current ranges of the IVIUM potentiostat to which it is connected. These additional current ranges are available for potentiostatic measurements going down to 100fA range. It is an analog module and is compatible with almost all Ivium potentiostats, including the 24bit instruments.
Current Interrupt 5A
Download CE Link Brochure

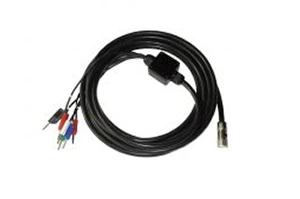

Current Interrupt 10A
HiSens32
The HiSens32 is available for 3 current ranges: 1nA, 100pA and 10pA.
CE Link
Download CE Link Brochure
MultiWE32

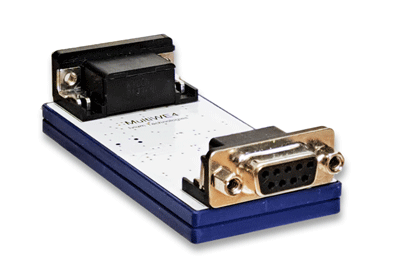

WE4
Features ±2.5mA maximum current per WE, ±10V potential range, and 10nA-1mA current ranges. Supports simultaneous DC sampling and EIS measurements up to 100kHz.
uMUX
8 independent channels per module, with complete electrode switching capabilities (WE, CE, RE, S, WE2). Modular and stackable system up to 8 units, allowing control of up to 64 channels. Using relay-based switching, it's compatible with various Ivium potentiostats including high-voltage models.
HiMUX.XR

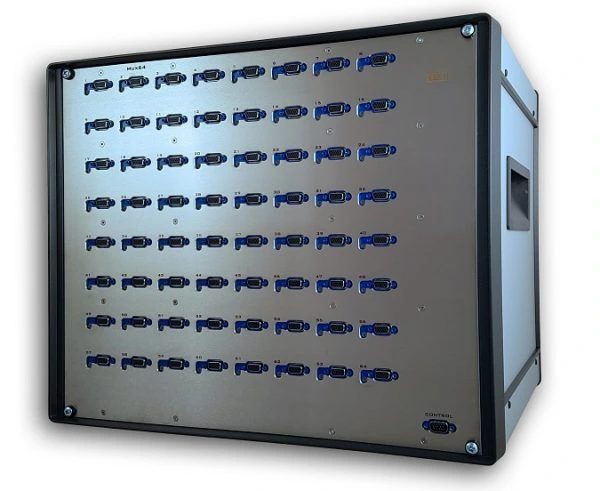

uMUX 64
Cost-effective alternative to stacked uMUX modules with integrated software control.
MUX32
Download IVIUM MUW32 Product Note

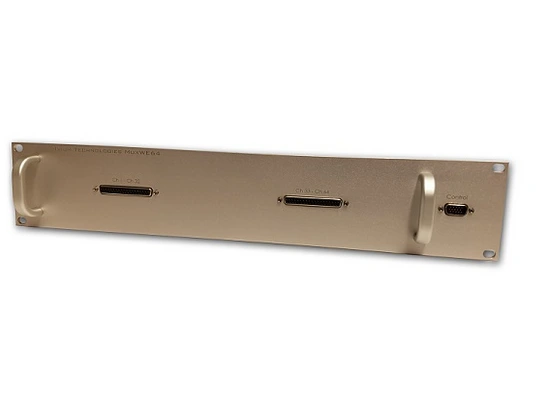

MUXWE64

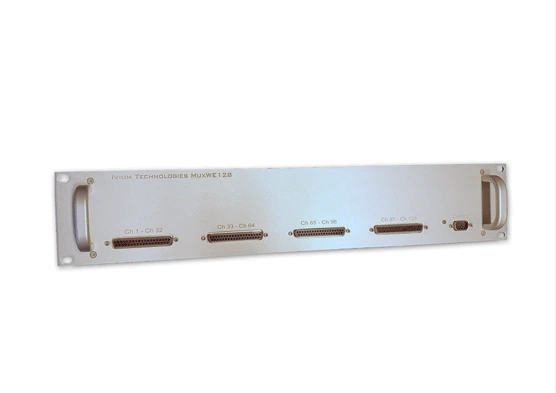

MUXWE128
Download IVIUM MUXWE128 Product Note

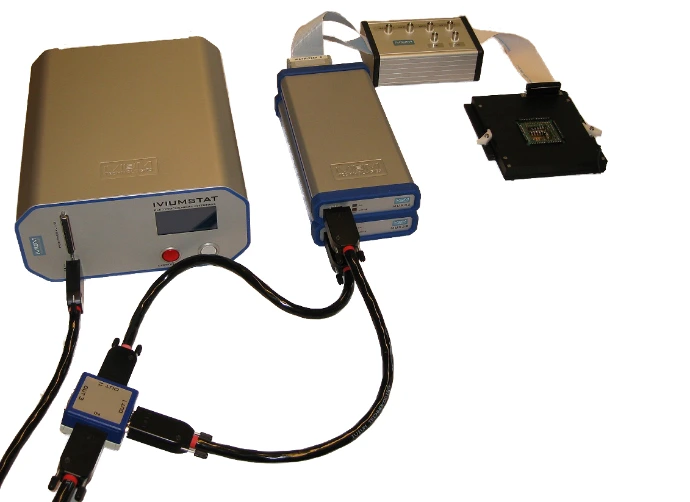

Multi Electrode Assembly MEA
The Ivium MEA consists of a single-channel potentiostat/galvanostat with integrated EIS, Multiple MUX32 multiplexer modules / junction box / connector cables and MEA adapter. Multiple MUX32 multiplexer modules are stacked to meet the required number of channels.
Download IVIUM MEAProduct Note

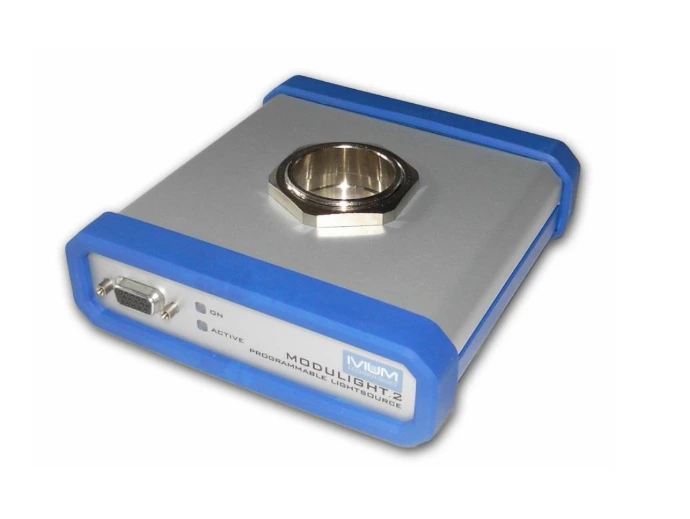

ModuLight

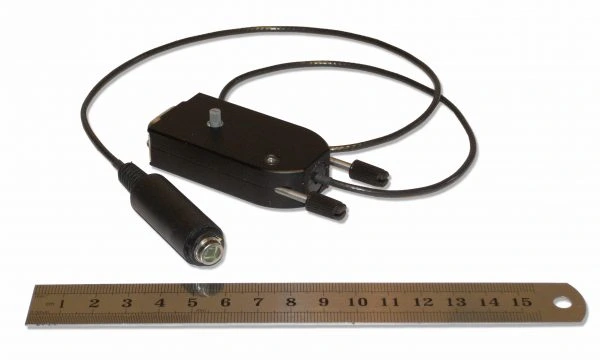

ModuSens
Its operation and measurement are integrated in IviumSoft.

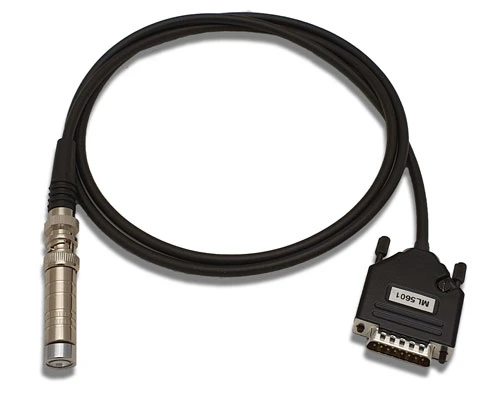

ModuLed
It offers adjustable light intensity modulation (10µHz to 2MHz) and comes with interchangeable LED options ranging from UV-A (385nm) to IR (940nm).
StackAnalyser
Features ±10V differential range, ±20V common mode voltage, and >10^12 Ohm input impedance. Connects via DB15 peripheral port in 2U 19-inch rack format. Provides dual BNC connectors per channel for voltage monitoring and impedance analysis up to 100kHz. Integrates with IviumSoft for satellite plot display of measurements.
sPDA

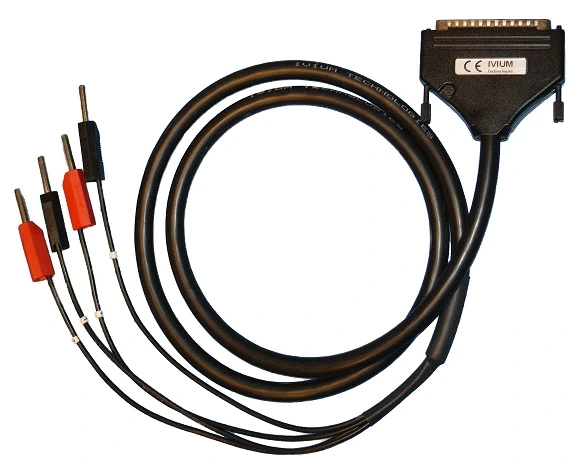

mPDA

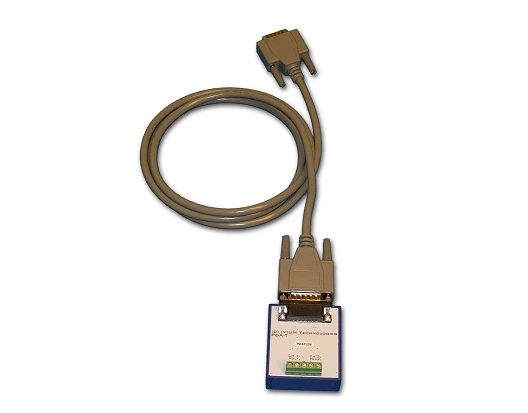

PDA-T
TCM-K
PPE Peripheral Port Expander
Download IVIUM PPE Product Note
PDA Peripheral Differential Amplifier

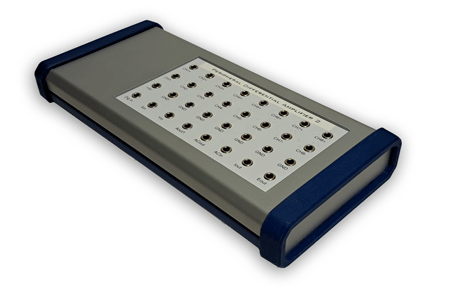

PDA2 Peripheral Differential Amplifier
The PDA2 is compatible with instruments which have a SubD15 peripheral port and is powered from the grid via an adapter.
The PDA2 gives access to most of the 15pin peripheral port signals. The 8 analog inputs on the PDA2 are multiplexed to the (2) available analog inputs on the peripheral port.
OctoPDA
OctoPDA-T

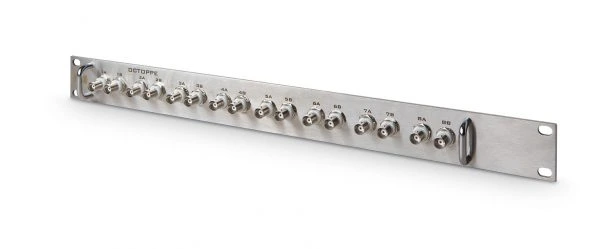

OctoPPE
OctoPPE-T
Features BNC connector for voltage measurements (-10V to +10V) with 1MOhm input resistance. Includes dedicated K-type thermocouple input for temperature monitoring from -50°C to 900°C, with ±2°C accuracy up to 400°C and ±1.6% above. Both signals transfer directly to potentiostat peripheral port analog inputs.

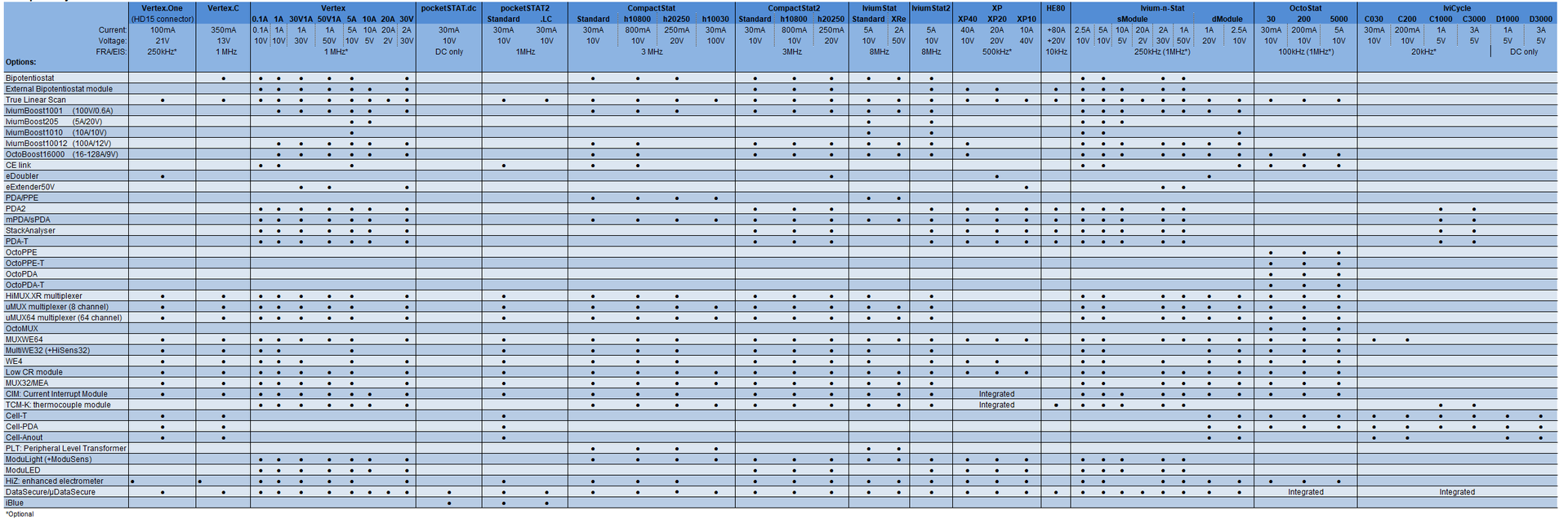

Compatibility Overview of IVIUM Instruments
IviumSoft: all you need in a single suite
Ivium provides outstanding software to match every research application.
IviumSoft intuitive software suite is feature-rich and is common to all of IVIUM instruments. It comprises several operation modes which offers one complete powerful and versatile package of control and analysis software, suitable for any Windows operated system.
It is free with each instrument with unlimited installs.
Included applications:
- CycliScan.
- Multichannel Mode (MC Mode).
- IviLAB.
- Batch Mode
Custom integration services for electrochemical devices.
Are you an state-of-the-art researcher designing unique experiments? Or perhaps an industry professional seeking to include a potentiostat into your production or QC/QA system with customized software control?
Our integration services cater to those in need of custom interfaces for electrochemical analysers in quality control environments or those searching for the ultimate flexibility in instruments control.
Looking for the right measurement solution for your application?
Whether you need advanced instrumentation, tailored integration or support with complex data analysis, our team can help you identify the most suitable approach for your technical requirements.
