Peripheral Modules
Enhanced Electrochemical Analysis
sPDA
Two-channel differential amplifier integrated into a 1.3m cable for recording high-ohmic external voltages. Compatible with Vertex/sModule devices equipped with peripheral ports.
mPDA
Two-channel differential amplifier integrated in 1.3m cable for recording high-ohmic external voltages.
Available in versions compatible with CompactStat/IviumStat and sModule/Vertex systems.
PDA-T
Dual-function module combining high-ohmic voltage measurement and temperature monitoring capabilities via K-type thermocouple input (10-900°C range).
Peripheral Differential Amplifier
Eight-channel differential amplifier for high-ohmic voltage measurements. Stackable up to 8 units for 64-channel operation. Includes 5V/100mA power output and interfaces analog/digital I/O from potentiostat.
Peripheral Differential Amplifier PDA2
Eight-channel differential amplifier for high-impedance voltage measurements. Connects via SubD15 peripheral port with multiplexed analog inputs measured in sequential pairs. Provides access to digital I/O, analog output, AC signals, and voltage monitoring.
Peripheral Port Expander
The Peripheral Port Expander (PPE) is a break out box for the peripheral port of the CompactStat and IviumStat. The 37-pin peripheral port signals are transferred from connector to the 4mm banana sockets for easy connection and access to the various analog/digital inputs and outputs.
OctoPDA
Eight-channel module enabling dual differential voltage measurements per OctoStat channel.
Features two high-impedance (>1E12 Ohm) BNC inputs per channel with ±10V measurement range. Signals transfer directly to potentiostat peripheral port through analog inputs 1 and 2. Designed specifically for OctoStat integration.
OctoPDA-T
Dual-input module for OctoStat systems combining differential voltage and temperature measurements.
Channel 1 features high-impedance (>1E12 Ohm) BNC inputs for ±10V differential measurements. Channel 2 provides K-type thermocouple interface measuring -50°C to 900°C with ±2°C accuracy up to 400°C and ±1.6% above. Both signals route directly to potentiostat peripheral port analog inputs.
OctoPPE
Eight-channel module for OctoStat systems providing dual analog measurement capabilities.
Features two BNC inputs per channel with ±10V range and 1MΩ input resistance. Channel 1 supports input/output while Channel 2 functions as input only. Both signals route directly to potentiostat peripheral port analog inputs.
OctoPPE-T
OctoPPE-T module enables dual analog measurements per OctoStat channel.
Features BNC connector for voltage measurements (-10V to +10V) with 1MOhm input resistance. Includes dedicated K-type thermocouple input for temperature monitoring from -50°C to 900°C, with ±2°C accuracy up to 400°C and ±1.6% above. Both signals transfer directly to potentiostat peripheral port analog inputs.
StackAnalyser
Eight-channel analyzer for simultaneous voltage and EIS measurements in cell stacks.
Features ±10V differential range, ±20V common mode voltage, and >10^12 Ohm input impedance. Connects via DB15 peripheral port in 2U 19-inch rack format. Provides dual BNC connectors per channel for voltage monitoring and impedance analysis up to 100kHz. Integrates with IviumSoft for satellite plot display of measurements.
Peripheral Level Transformer
PLT adapter module transforms voltage ranges of analog signals for enhanced external device compatibility.

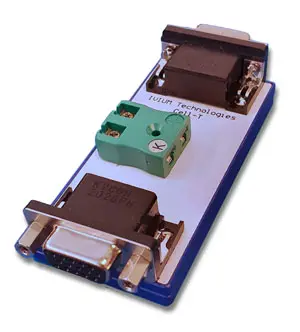

TCM-K
K-type thermocouple interface module for simultaneous temperature and electrochemical measurements. Operates across 10-900°C range with ±2°C accuracy up to 400°C and ±1.6% above. Outputs 5mV/°C analog signal to potentiostat's peripheral port. Functions in 0-50°C ambient conditions.
External Bipotentiostat
Enables dual working electrode measurements with programmable potential control. Features ±2.0V offset range with 0.0625mV resolution and ±30mA maximum current capacity. Operates in fixed potential or scanning modes with simultaneous data acquisition up to 300kHz. Requires DB15 peripheral port and ±10V output voltage compatibility.
Compatibility Overview
An overview of the compatibility of Ivium modules with our range of potentiostats can be found by clicking on the image below:
