AIDA Tianjin Photoelectrolytic Cells
Cells and accesories for all photoelectrochemistry applications
Optimizing your Electrochemical Research
SFTec offers a comprehensive range of photoelectrolytic cells, including conventional electrochemical cells and H‑type cells with replaceable ion‑exchange membranes, available with or without a thermostatic jacket and covering multiple geometries and setups tailored to different photoelectrochemical workflows.
These PTFE and glass-based cells provide flexible electrode arrangements for front- or back-side illumination and typical working volumes from around 50 up to 150 mL, enabling high-precision studies in solar fuel generation, photocatalysis, corrosion and general electrochemistry, and integrating seamlessly with potentiostats and light sources for reliable, high‑quality data in academic and industrial R&D labs
Photoelectrochemical Cells Line Up

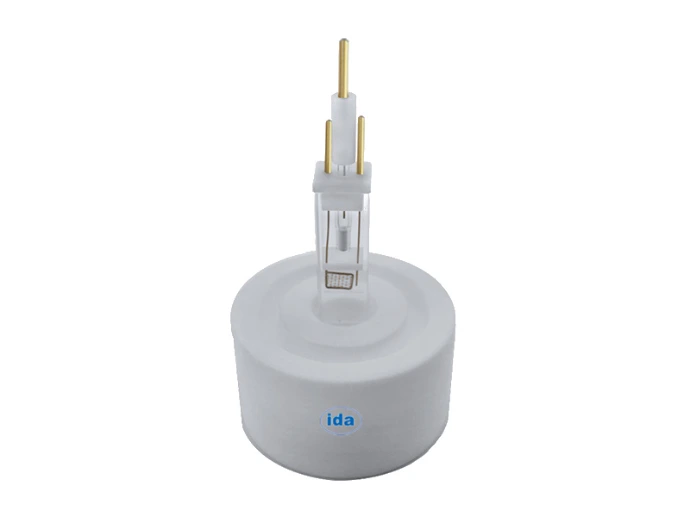

Spectroelectrochemical Cells
Features:
Volume – 0.1ml
Dimension– 12.5(L) x 12.5(W) x 42(H)
Cell body Material: Quartz.
Included:
Reference Electrode: Ag/AgCl.
Counter Electrode: Pt wire.
Working Electrode: Pl mesh.
Catalog No. | Description |
AIDA K003 | Spectroelectrochemical cell |

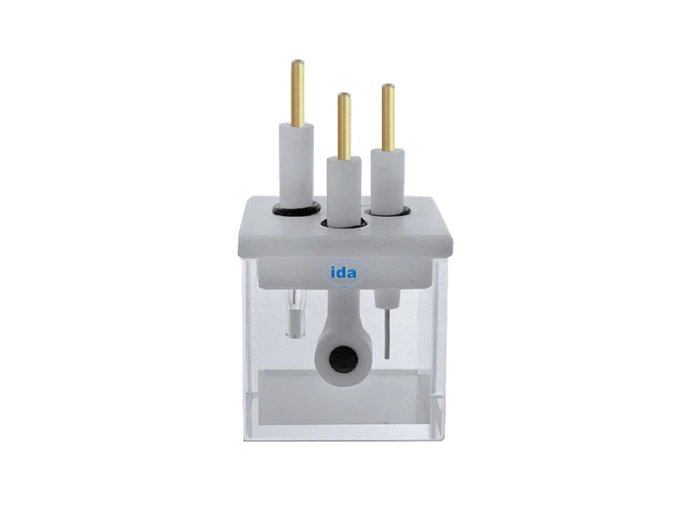

Full Quartz body Photoelectrochemical cell
Features:
Three electrode system
Quartz fusion method cell body, four-sided light transmission
Teflon cover
- Compatible with several types of electrode (not included). Electrodes can be flexibly arranged according to experimental requirements
Catalog No. | Description |
AIDA K020-50 | AIDA Full Quartz body Photoelectrochemical cell 50*50*50mm |
AIDA K020-4040 | AIDA Full Quartz body Photoelectrochemical cell 40*40*40mm |
AIDA K020-3030 | AIDA Full Quartz body Photoelectrochemical cell 30*30*30mm |
AIDA K020-15 | AIDA Full Quartz body Photoelectrochemical cell 35 (long) * 15 (wide) * 45 (heigh) |
AIDA K020-3050 | AIDA Full Quartz body Photoelectrochemical cell 30*30*50 (heigh) |
AIDA K020-4050 | AIDA Full Quartz body Photoelectrochemical cell 40*40*50 (heigh) |

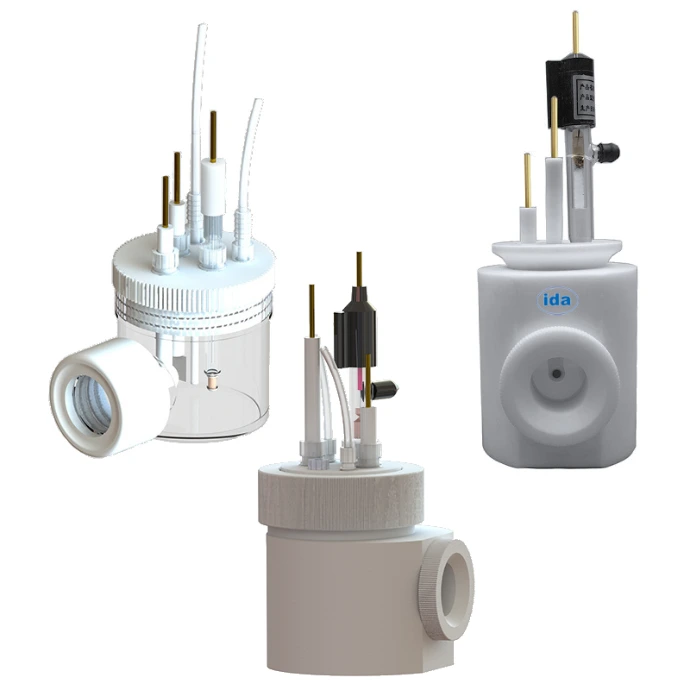

Standard Photoelectrochemical cell K040
Features:
Three electrode system
Sealed or non-sealed
Body Material
Glass pool body and teflon lids
Teflon pool body and lids
PTFE pool body and lids
Quartz Window (Diameter 24mm)
- Main Cell Volume: 50ml, 100ml, 150ml
- Compatible with several types of electrode (not included)
Catalog No. | Description |
AIDA K040-50ml | Standard Non-Sealed Glass body Photoelectrochemical cell 50ml |
AIDA K040-Teflon-50ml | Standard Non-Sealed Teflon body Photoelectrochemical cell 50ml |
AIDA K040-PTFE-50ml | Standard Non-Sealed PTFE Photoelectrochemical cell 50ml |
AIDA K040-S-50ml | Standard Sealed Glass body Photoelectrochemical cell 50ml |
AIDA K040-S-Teflon-50ml | Standard Sealed Glass body Photoelectrochemical cell 50ml |
AIDA K040-S-PTFE-50ml | Standard Sealed PTFE body Photoelectrochemical cell 50ml |
AIDA K040-100ml | Standard Non-Sealed Glass Photoelectrochemical cell 100ml |
AIDA K040-Teflon-100ml | Standard Non-Sealed Teflon body Photoelectrochemical cell 100ml |
AIDA K040-PTFE-100ml | Standard Non-Sealed PTFE body Photoelectrochemical cell 100ml |
AIDA K040-S-100ml | Standard Sealed Glass body Photoelectrochemical cell 100ml |
AIDA K040-S-Teflon-100ml | Standard Sealed Teflon body Photoelectrochemical cell 100ml |
AIDA K040-S-PTFE-100ml | Standard Sealed PTFE body Photoelectrochemical cell 100ml |
AIDA K040-150ml | Standard Non-Sealed Glass body Photoelectrochemical cell 150ml |
AIDA K040-Teflon-150ml | Standard Non-Sealed Teflon body Photoelectrochemical cell 150ml |
AIDA K040-PTFE-150ml | Standard Non-Sealed PTFE body Photoelectrochemical cell 150ml |
AIDA K040-S-150ml | Standard Sealed Photoelectrochemical cell 150ml |
AIDA K040-S-Teflon-150ml | Standard Sealed Teflon body Photoelectrochemical cell 150ml |
AIDA K040-S-PTFE-150ml | Standard Sealed PTFE body Photoelectrochemical cell 150ml |
Water Jacketed Sealed Photoelectrochemical cell K045
Features:
Water jacket for temperature control
Three electrode system
Sealed or non-sealed
Glass pool body and teflon lids
Quartz Window (Diameter 24mm)
- Main Cell Volume: 50ml, 100ml, 150ml
- Compatible with several types of electrode (not included)
Catalog No. | Description |
AIDA K045-50ml | Standard Water Jacketed Non-Sealed Glass body Photoelectrochemical cell 50ml |
AIDA K045-S-50ml | Standard Water Jacketed Sealed Glass body Photoelectrochemical cell 50ml |
AIDA K045-100ml | Standard Water Jacketed Non-Sealed Glass body Photoelectrochemical cell 100ml |
AIDA K045-S-100ml | Standard Water Jacketed Sealed Glass body Photoelectrochemical cell 100ml |
AIDA K045-150ml | Standard Water Jacketed Non-Sealed Glass body Photoelectrochemical cell 150ml |
AIDA K045-S-150ml | Standard Water Jacketed Sealed Glass body Photoelectrochemical cell 150ml |

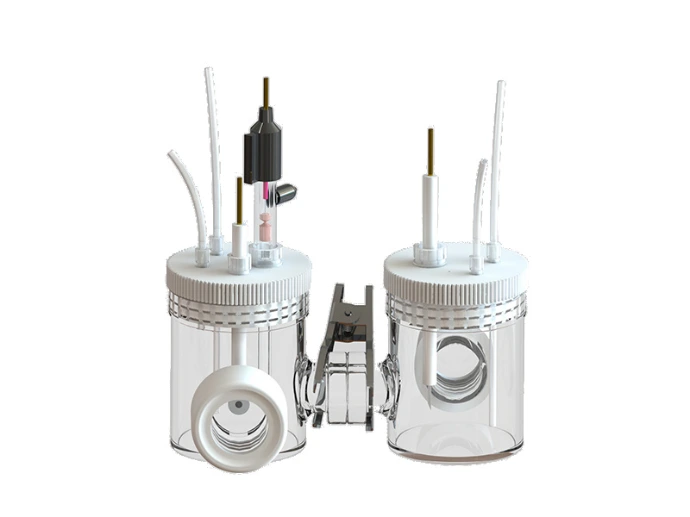

Sealed H-type Photoelectrochemical cell K013-S
Features:
Three electrode system
Fully sealed system
Replaceable membrane
Glass pool body and teflon lids
Quartz Window (Diameter 24mm)
- Main Cell Volume: 50ml, 100ml, 150ml
- Compatible with several types of electrode (not included)
Catalog No. | Description |
AIDA K013-S-50ml | Sealed H-type Sealed Photoelectrochemical cell 50ml |
AIDA K013-S-100ml | Sealed H-type Sealed Photoelectrochemical cell 100ml |
AIDA K013-S-150ml | Sealed H-type Sealed Photoelectrochemical cell 150ml |

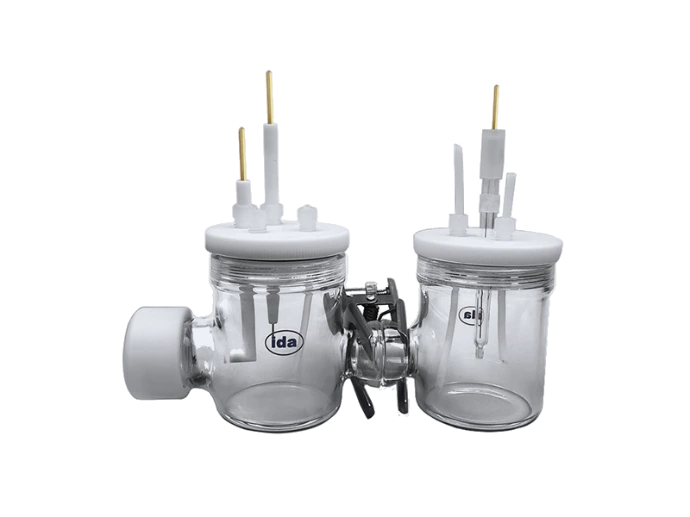

Sealed Photoelectrochemical H-type cell K012-S
Features:
Three electrode system
Fully sealed system
Replaceable membrane
Glass pool body and teflon lids
Quartz Window (Diameter 24mm)
- Main Cell Volume: 50ml, 100ml, 150ml
- Compatible with several types of electrode (not included)
Catalog No. | Description |
AIDA K012-S-50ml | Sealed H-type Sealed Photoelectrochemical cell 50ml |
AIDA K012-S-100ml | Sealed H-type Sealed Photoelectrochemical cell 50ml |
AIDA K012-S-150ml | Sealed H-type Sealed Photoelectrochemical cell 50ml |

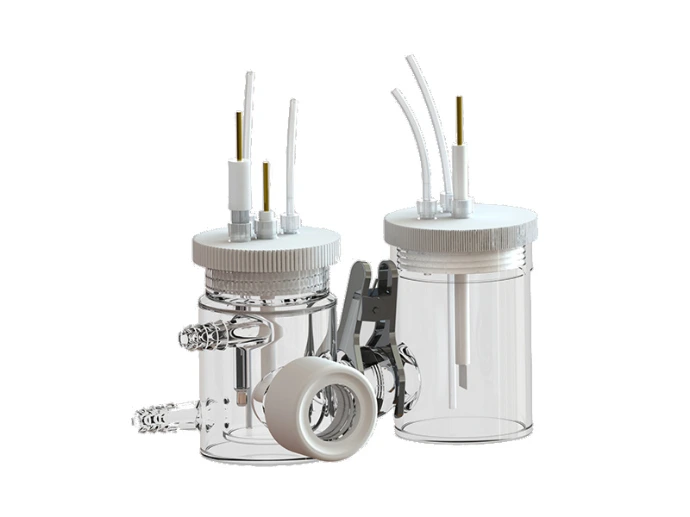

Water Jacketed Sealed Photoelectrochemical H-type cell
Features:
Water bath temperature control
Three electrode system
Fully sealed system
Replaceable membrane
Glass pool body and teflon lids
Quartz Window (Diameter 24mm)
- Main Cell Volume: 50ml, 100ml, 150ml
- Compatible with several types of electrode (not included)
Catalog No. | Description |
AIDA K011-S-50ml | Water Jacketed Sealed H-type Sealed Photoelectrochemical cell 50ml |
AIDA K011-S-100ml | Water Jacketed Sealed H-type Sealed Photoelectrochemical cell 100ml |
AIDA K011-S-150ml | Water Jacketed Sealed H-type Sealed Photoelectrochemical cell 150ml |

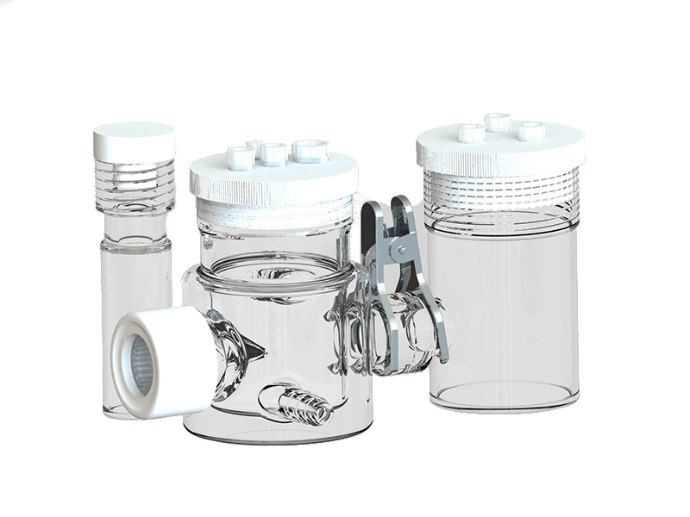

3 Ports Water Jacketed Sealed Photoelectrochemical cell
Features:
3 Ports photoelectrochemical reactor
Water bath temperature control
Three electrode system
Fully sealed system
Replaceable membrane
Glass pool body and teflon lids
Quartz Window (Diameter 24mm)
- Main Cell Volume: 50ml, 100ml, 150ml
- Compatible with several types of electrode (not included)
Catalog No. | Description |
AIDA K010-S-50ml | 3 Ports Water Jacketed Sealed Photoelectrochemical H-type cell 50ml |
AIDA K010-S-100ml | 3 Ports Water Jacketed Sealed Photoelectrochemical H-type cell 100ml |
AIDA K010-S-50ml | 3 Ports Water Jacketed Sealed Photoelectrochemical H-type cell 150ml |
