HEPATOCHEM Photoreactors and LEDS
LEDS, reactors and accessories for photochemistry applications
Leading manufacturer of Photoreactors, metabolites and LEDs
SFTec offers a comprehensive range of photoelectrolytic cells, including conventional electrochemical cells and H‑type cells with replaceable ion‑exchange membranes, available with or without a thermostatic jacket and covering multiple geometries and setups tailored to different photoelectrochemical workflows.
These PTFE and glass-based cells provide flexible electrode arrangements for front- or back-side illumination and typical working volumes from around 50 up to 150 mL, enabling high-precision studies in solar fuel generation, photocatalysis, corrosion and general electrochemistry, and integrating seamlessly with potentiostats and light sources for reliable, high‑quality data in academic and industrial R&D labs
HEPATOCHEM Photochemical Line Up

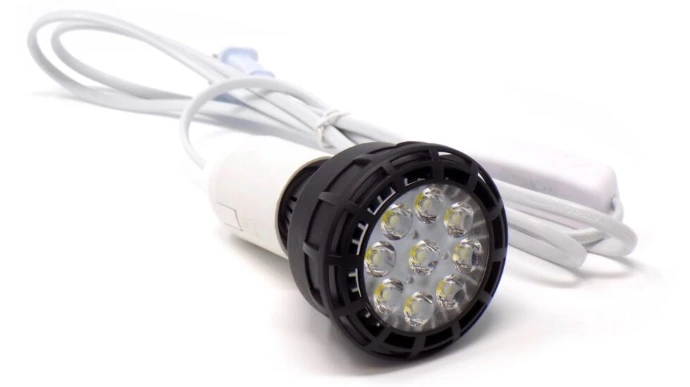

EvoluChem™ LEDs
LEDs designed for photo-catalytic chemistry applications to irradiate all samples with maximum efficiency.
General Specifications
Irradiance at 2 cm: 90 mW/cm2 to 350 mW/cm2 see specific irradiance in table.
Input Voltage: 100-240 VAC
Beam Angle: 25° Except for 365 nm, 380 nm and 390 nm at 30°

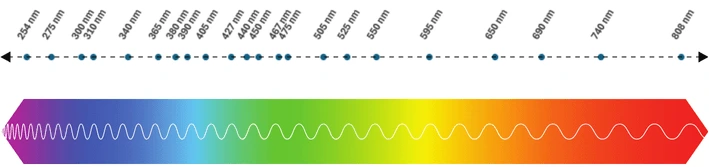

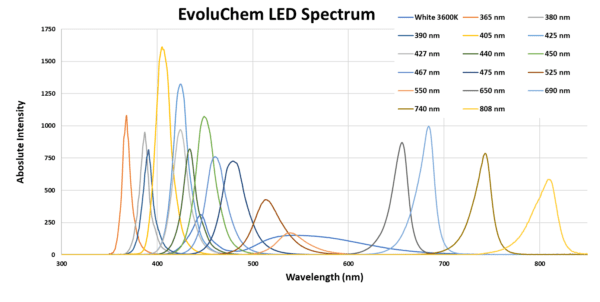

Wavelength Options: 365 nm, 380 nm, 390 nm, 405 nm, 425 nm, 427 nm, 440 nm, 450 nm, 467 nm, 475 nm, 505 nm, 525 nm, 550 nm, 595 nm, 650 nm, 690 nm, 740 nm, 808 nm and 6200K white

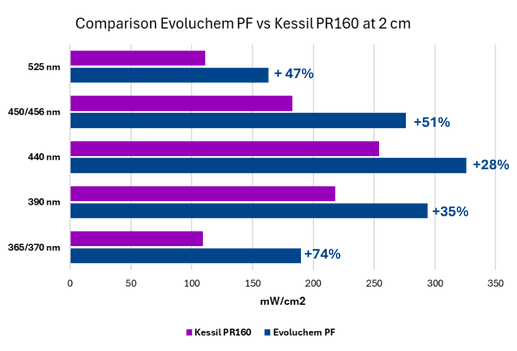

Check this publication with direct comparison of different light sources Org. Chem. 2024, 89, 22, 16070–16092
https://pubs.acs.org/doi/10.1021/acs.joc.3c02351
Hepatochem Ref. | Wavelength | Irradiance | Name |
| HCK1012-01-033 | 1000 nm | NA | EvoluChem LED 1000PF non-dimmable 110V-220V |
| HCK1012-01-029 | 365 nm | 190 mW/cm2 | EvoluChem LED 365PF non-dimmable 110V-220V |
| HCK1012-01-013 | 380 nm | 211 mW/cm2 | EvoluChem LED 380PF non-dimmable 110V-220V |
| HCK1012-01-018 | 390 nm | 294 mW/cm2 | EvoluChem LED 390PF non-dimmable 110V-220V |
| HCK1012-01-010 | 405 nm | 201 mW/cm2 | EvoluChem LED 405PF non-dimmable 110V-220V |
| HCK1012-01-012 | 425 nm | 166 mW/cm2 | EvoluChem LED 425PF non-dimmable 110V-220V |
| HCK1012-01-020 | 427 nm | NA | EvoluChem LED 427PF non-dimmable 110V-220V |
| HCK1012-01-021 | 440 nm | 326 mW/cm2 | EvoluChem LED 440PF non-dimmable 110V-220V |
| HCK1012-01-002 | 450 nm | 328 mW/cm2 | EvoluChem LED 450PF non-dimmable 110V-220V |
| HCK1012-01-022 | 467 nm | 332 mW/cm2 | EvoluChem LED 467PF non-dimmable 110V-220V |
| HCK1012-01-003 | 475 nm | 206 mW/cm2 | EvoluChem LED 475PF non-dimmable 110V-220V |
| HCK1012-01-028 | 505 nm | NA | EvoluChem LED 505PF non-dimmable 110V-220V |
| HCK1012-01-004 | 525 nm | 163 mW/cm2 | EvoluChem LED 525PF non-dimmable 110V-220V |
| HCK1012-01-023 | 550 nm | 62 mW/cm2 | EvoluChem LED 550PF non-dimmable 110V-220V |
| HCK1012-01-030 | 595 nm | 91 mW/cm2 | EvoluChem LED 595PF non-dimmable 110V-220V |
| HCK1012-01-005 | 6200K white | 338 mW/cm2 | EvoluChem LED 6200K PF non-dimmable 110V-220V |
| HCK1012-01-014 | 650 nm | 335 mW/cm2 | EvoluChem LED 650PF non-dimmable 110V-220V |
| HCK1012-01-024 | 690 nm | 281 mW/cm2 | EvoluChem LED 690PF non-dimmable 110V-220V |
| HCK1012-01-015 | 740 nm | 328 mW/cm2 | EvoluChem LED 740PF non-dimmable 110V-220V |
| HCK1012-01-025 | 808 nm | 256 mW/cm2 | EvoluChem LED 808PF non-dimmable 110V-220V |
| HCK1012-01-032 | 850 nm | NA | EvoluChem LED 850PF non-dimmable 110V-220V |

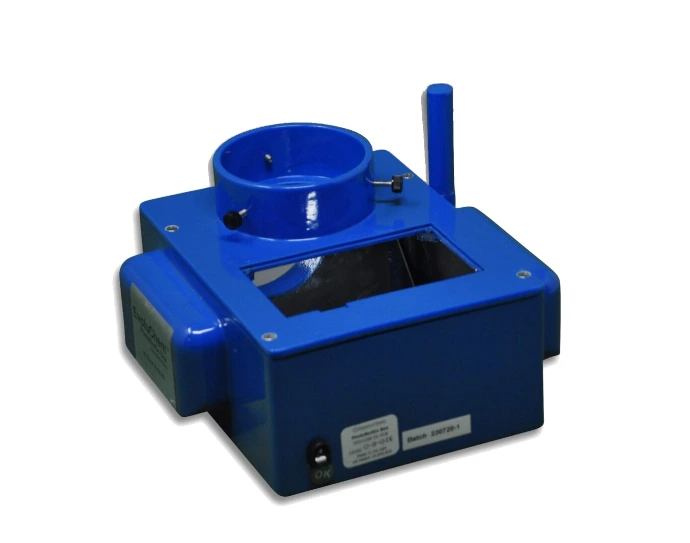

Evoluchem PhotoRedOx Box™
Features:
- Several light sources available 365 nm to 808 nm
- Photochemistry chamber to optimize light intensity
- Flexible format vials
- Magnetic stirring on standard stirring plate
- Cooling by fan to maintain experiment at room temperature
- Pre-designed array of catalysts and reagents available
Benefits:
- Easy setup on a standard stirring plate
- Perform up to 32 reaction conditions simultaneously
- Individually sealed vials enable flexible study design
- Save your substrate using low scale reaction conditions
- Save time on optimization
Catalog No. | Description | SKU |
HEPATOCHEM PhotoRedOx Box | Photochemistry Photoreactor | HCK1006-01-016 |
Evoluchem PhotoRedOx Box™
Features:
- Several light source available
- Photochemistry chamber to evenly distribute light
- Flexible format vials
- Magnetic stirring on standard stirring plate
- Cooling by fan to maintain experiment at room temperature
- Pre-designed array of catalysts and reagents available
Benefits:
- Easy setup on a standard stirring plate
- Perform up to 32 reaction conditions simultaneously
- Individually sealed vials enable flexible study design
- Save your substrate using low scale reaction conditions
- Save time on optimization
Catalog No. | Description | SKU |

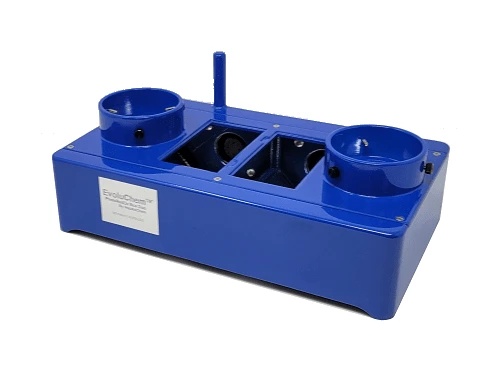

HEPATOCHEM PhotoRedOx Duo™ | Photochemistry Photoreactor with double capacity | HCK1006-01-23 |
