ATP1000 Series
Micro Spectrometer
Cost-effective and Customizable

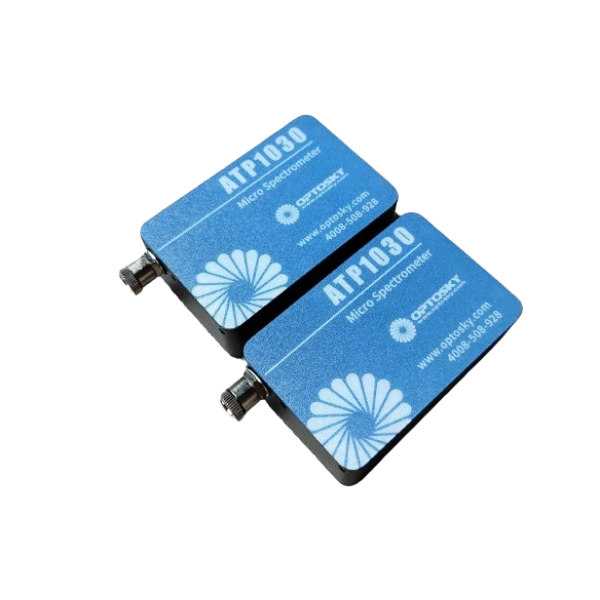

The ATP1010 and ATP1030 spectrometers are compact, versatile devices designed for a wide range of applications from UV to NIR wavelengths. The ATP1010 features a 512-pixel CMOS detector, while the ATP 1030 offers higher resolution with a 1024-pixel UV-enhanced CMOS detector. Both models can be customized with various slits, gratings, and filters to suit specific needs in spectroscopy, environmental monitoring, and sensing.
These spectrometers are ideal for in-field
quality monitoring and OEM applications due to their small footprint and
USB power supply. The ATP1030 stands out with its shorter exposure
time and precise signal-to-noise ratio control. Both models support
free-space input or fiber-coupled SMA905 connectors, making them highly
adaptable for diverse usage scenarios.
Compact Design
Small footprint, ideal for portable and in-field applications.
Customizable
Configurable with various slits, gratings, and filters for tailored applications.
Versatile
Supports both free-space input and fiber-coupled SMA905 connector options.
Wavelength Range
UV to NIR spectrum (180-1100 nm for ATP 1010, 190-1100 nm for ATP 1030).
Detector Resolution
ATP 1010 uses 512-pixel CMOS, while ATP 1030 offers higher resolution with 1024-pixel UV-enhanced CMOS.
User-Friendly Interface
USB-powered for convenient use in outdoor and OEM applications.
