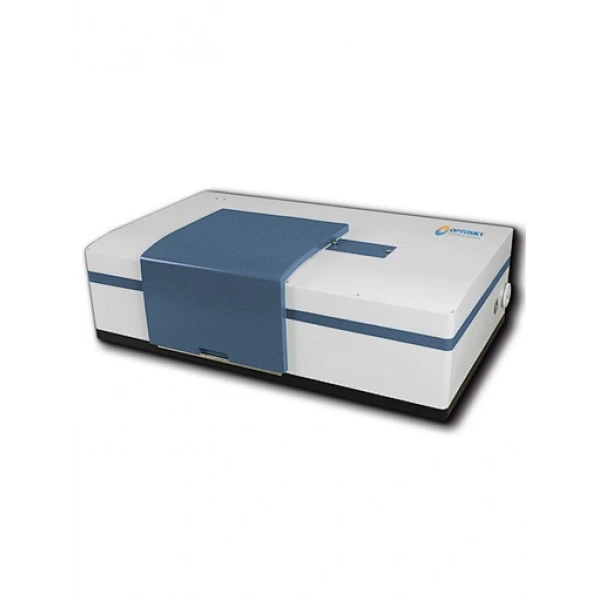

ATP8900 FTIR

Integrated Excellence for Advanced Infrared Analysis

Built for Advanced Research

ATP8900 build on upgraded optics bench reach up to highest resolution 0.5cm-1 at affordable price. It is widely used to chemically analyze any kind of samples, in solid, liquid or gas. It can configure flexible single or double sample compartment.
They are compatible with transmission modules, attenuated total reflection (ATR), diffuse and specular reflection, and gas cell. This versatility makes it easy to meet different research needs.

Request a quotation

Spectral Range: 8000-350cm-1

Extensive spectral range from near to far-infrared, enabling comprehensive molecular analysis across diverse applications.

Advanced Optical Design

Gold mirror systems and long-life interferometers ensure superior stability and reflectivity, enhancing overall measurement accuracy.

Vacuum-Enabled Technology

Vacuum optics benches, eliminating atmospheric interference and extending analysis into terahertz regions

Spectral Resolution≤1cm-1

Spectral resolutions down to ≤1 cm-1, providing detailed spectral information for advanced research.

Versatile Sampling

Modular design compatible with various accessories, allowing analysis of solids, liquids, gases, and challenging samples with ease.

Software Integration

Powerful, user-friendly software packages for seamless data acquisition, processing, and analysis, enhancing productivity.

Specifications & Datasheets

Model	ATP8900	ATP8900-RE	ATP8900-E	ATP8900-1-C	ATP8900-2-C-S	ATP8900-2-C-T
Spectral Range	8000-350 cm-1	8000-350 cm-1	8000-350 cm-1	8000-350 cm-1	8000-350 cm-1	8000-350 cm-1
Spectral Resolution	≤1 cm-1	≤1 cm-1	≤1 cm-1	≤1 cm-1	≤1 cm-1	≤1 cm-1
IR Source	vacuum cooling ceramic light source, 1550K	vacuum cooling ceramic light source, 1550K	vacuum cooling ceramic light source, 1550K	vacuum cooling ceramic light source, 1550K	vacuum cooling ceramic light source, 1550K	vacuum cooling ceramic light source, 1550K
Laser	Solid Laser	Solid Laser	Solid Laser	Solid Laser	Solid Laser	Solid Laser
Beamsplitter	KBr	KBr	KBr	KBr	KBr	KBr
Detector	Temperature controlled DTGS	Temperature controlled DTGS	Temperature controlled DTGS	Temperature controlled DTGS	Temperature controlled DTGS	Temperature controlled DTGS
Wavenumber Accuracy	Better than 0.01 cm-1	Better than 0.01 cm-1	Better than 0.01 cm-1	Better than 0.01 cm-1	Better than 0.01 cm-1	Better than 0.01 cm-1
Signal to Noise	≥40,000:1	≥40,000:1	≥40,000:1	≥40,000:1	≥40,000:1	≥40,000:1
Dimensions	685 × 415 × 223 mm	685 × 415 × 223 mm	685 × 415 × 223 mm	685 × 415 × 223 mm	685 × 415 × 223 mm	685 × 415 × 223 mm
Features	Standard Model	FT-IR Emission Spectroscopy	Teaching version	Routine benchtop FT-IR spectrometer	2 compartments	2 compartments and 2 independent channel operation

ATR8900

ATR8900Pro

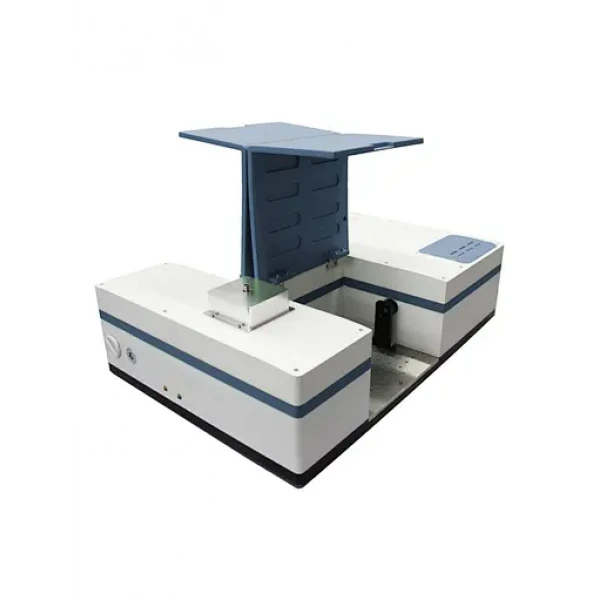

ATR8900-2C
