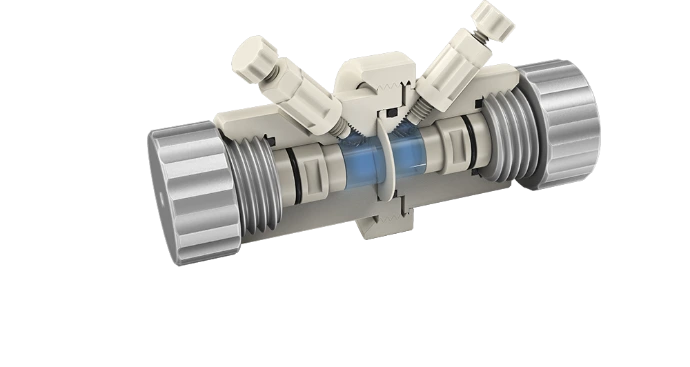

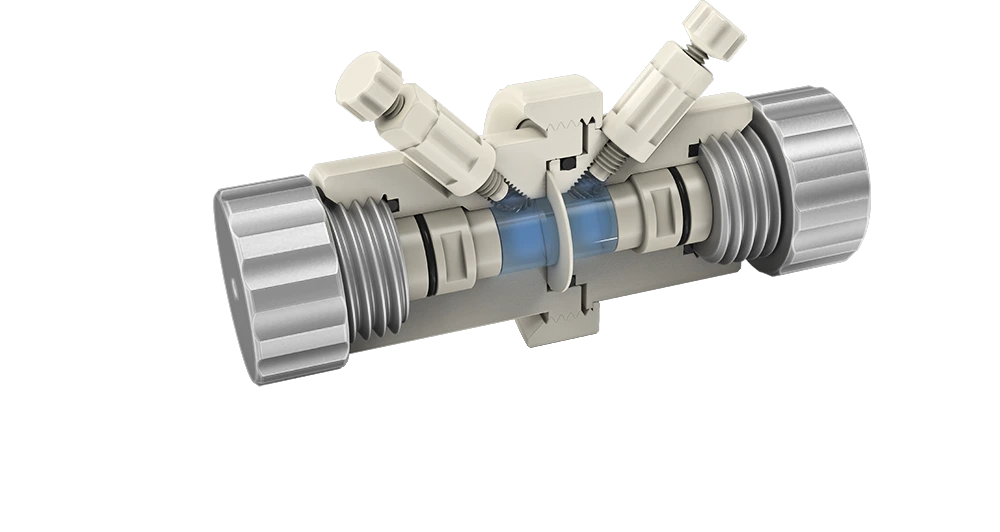

TCE Test Cell One
Double-chamber test cell for studying membranes, separators, and electrolytes
Two compartments – plenty of options
For assembling and disassembling, no tools are needed. For adjusting the temperature, the cell can be used inside of a climate chamber.
Specifications and content
The TCE Cell One requires only a low amount of liquid electrolyte (approx. 1.8 ml) which can be split into two compartments when inserting a membrane, separator foil or solid ion conductor.
Since each experiment requires different tools, the TCE Cell One is delivered without electrodes. Electrodes with core material of your choice have to be ordered separately. For assembling the TCE Cell One, no tools or screws are required.
The test cell can be handled easily – also when working in a glovebox. The TCE Cell is air-tight, and therefore measurements can be prepared inside and outside of the glovebox when working with air- and moisture-sensitive samples.
In case that the temperature should be adjusted, the TCE Cell One can be placed into an oven or climate chamber. It can be used in a temperature range from -40 °C to +100 °C.
Benefit from this innovative test cell which can be split into two compartments by inserting a membrane or separator material.
- Double-chamber test cell which can be split into two compartments by inserting a membrane or separator material
- Exchangeable electrodes with broad portfolio of available electrode materials
- Ports in the housing for inserting capillaries or reference electrodes
- Air-tight: moisture- and air-sensitive samples can be studied
- Investigation of solid electrolytes in contact with liquid electrolytes for investigating the (electro-)chemical stability
- Membrane and separator testing (permeability, MacMullin number)
- Electrolyte testing (conductivity, (electro-)chemical stability)
- Testing of active material coatings on current collector electrodes
- Investigation of redox reactions with separated counter electrode compartment.
DC Method to Determine the MacMullin Number of Separators
A simple direct current method to measure MacMullin numbers using the TCE Cell One is described. It does not require the use of electrochemical impedance spectroscopy or a frequency response analyzer.
MacMullin Number Determination for Lithium-ion Battery Separators by EIS – an Alternative Approach
The new test cell “TCE Cell One” has been used to measure the MacMullin number of a lithium-ion battery separator, using electrochemical impedance spectroscopy.
Determining Through-Plane Membrane Conductivity using Four-Electrode EIS
The TCE Cell One test cell enables measuring specifically the through-plane conductivity, as opposed to the in-plane conductivity, in either a two- or four-electrode configuration.
