Bipotentiostat
What is BiStat module?
A bipotentiostat (BiStat) is an internal module that enables a second working electrode (WE2) with a programmable potential offset with respect to the reference electrode (RE) or the first working electrode (WE1).
This module can be integrated as internal hardware at the time of purchase, but for instruments that did not have this option installed initially, an external bipotentiostat module is available.
The BiStat is used for various applications, including rotating ring disc electrode (RRDE) measurements. It is fully integrated into the potentiostatic Sweep and Transient methods of IviumSoft. Data from the bipotentiostat is recorded simultaneously with the primary channel and can be represented in the same plot using a secondary axis or in a separate plot. The maximum scan rate or minimum interval times are the same as for the primary channel.
Second WE
Second working electrode that can be used with respect to the RE or WE1
Internal module
Code upgrade capability for IviumStat and CompactStat instruments and ex-factory option for selected Vertex and sModules instruments.
Selectable offset
Applied offset potential range ±2.0 V
Avaliability
Available on IviumStat instruments, and selected CompactStat, Vertex and sModules
External BiStat
External Bipotentiosta module also avaliable
Maximum current ±30 mA
Specifications
Iviumsoft: all you need in a single suite
Ivium provides outstanding software to match every research application. IviumSoft intuitive software suite is feature-rich and is common to all of our instruments. It comprises several operation modes which offers one complete powerful and versatile package of control and analysis software, suitable for any Windows operated system.
Included applications:
- IviumSoft.
- CycliScan.
- Multichannel Mode (MC Mode).
- IviLAB.
- Batch Mode.
It is free with each instrument with unlimited installs.
Boost your equipment?
Are you looking to expand your electrochemical analysis capabilities beyond just a potentiostat? SFTec offers a wide range of additional equipment designed to seamlessly integrate with your potentiostat, allowing you to tackle even the most complex electrochemical experiments and take your research to the next level.

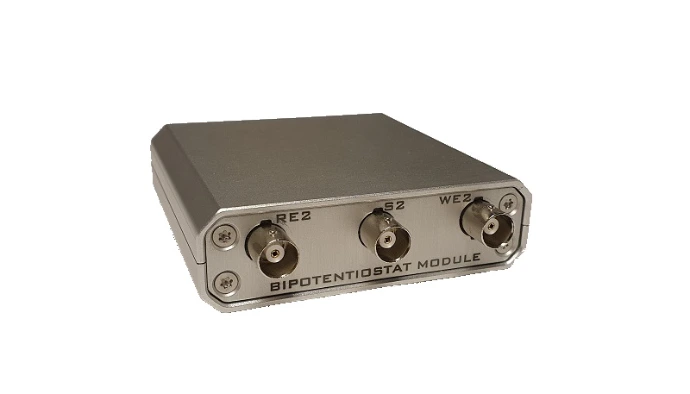

External BiStat
The external bipotentiostat module is an add-on module that enables a second working electrode (WE2) with programmable potential offset with respect to the RE or WE1. It is suitable for instruments and modules which have the DB15 peripheral port and ±10 V output voltage.
The bipotentiostat is fully integrated in the potentiostatic Sweep and Transient methods. Its data is recorded simultaneously with the primary channel and can be represented in the same plot using a secondary axis, or in a separate plot. The maximum scan rate or minimum interval times are the same as for the primary channel.
Custom integration services
Custom integration services for electrochemical devices.
Are you an state-of-the-art researcher designing unique experiments?
Or perhaps an industry professional seeking to include a potentiostat into your production or QC/QA system with customized software control?
Our integration services cater to those in need of custom interfaces for electrochemical analysers in quality control environments or those searching for the ultimate flexibility in instruments control.
