Accessories, cells and electrodes for all applications
SFTec provides electrodes, electrochemical cells and accessories for electrochemistry, corrosion, spectroelectrochemistry, battery testing and photochemistry, including basic three‑electrode cells, starter kits, special test cells, IDA electrodes, glassy carbon and other raw materials.
This wide range allows research groups to configure complete measurement setups and can be complemented with custom designs and materials tailored to specific experimental requirements.
The right accessories for your needs
Working, Reference and Counter electrodes for Electrochemical Testing
Working Electrodes
Working electrodes are essential components in electrochemical analysis, manufactured with high-purity conductive materials and polished finish. Their optimized design ensures precise and reproducible measurements, making them fundamental for various analytical applications requiring maximum reliability.

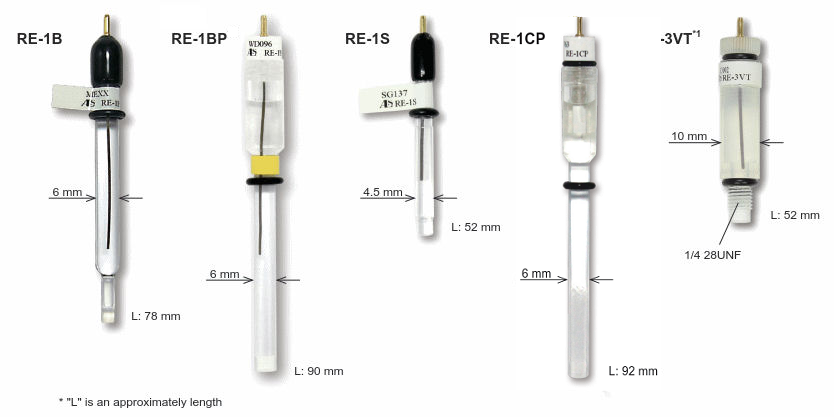

Reference Electrodes
Reference electrodes are precision-engineered components that provide stable and accurate potential measurements in electrochemical systems. Their reliable construction and consistent performance make them essential for maintaining reproducible experimental conditions across a wide range of analytical applications.
Auxiliary (Counter) Electrodes
Counter electrodes are high-performance components designed to complete the electrical circuit in electrochemical cells. Their robust construction and efficient current distribution ensure optimal measurement conditions, making them indispensable for accurate electrochemical analysis.

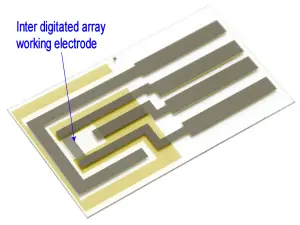

IDA / ITO Electrodes
Interdigitated Array (IDA) electrodes are electrode developed for electrochemical measurements to be performed in a very small quantity of the sample. IDA electrodes can be applied for the detection and reaction analysis of the compounds in a small quantity of the sample. IDA electrodes are microelectrode patterns fabricated by using the lithography technology. The Electrodes are composed of 65 pairs. In each one of the pair has a function of the oxidation and reduction electrodes.
Disk Electrode & Ring/Disk Electrode Tips
Disk and Ring Disk Electrode Tips deliver precise electrochemical measurements with interchangeable working electrodes. These tips feature various electrode materials including glassy carbon, platinum, and gold, with diameters from 1 to 5mm. The Ring Disk variants enable simultaneous detection of reaction products, making them ideal for mechanistic studies and trace analysis applications.
Standard and Special Purpose Electrochemical cells
ALS Voltammetry Cells
ALS voltammetry cells deliver precise electrochemical measurements with versatile design features. These cells accommodate 1-3 mL samples and standard 6mm electrodes, featuring options like water-jacketed models and Teflon caps for contamination prevention. Each unit includes sample vials and purging tubes for optimal experimental conditions.

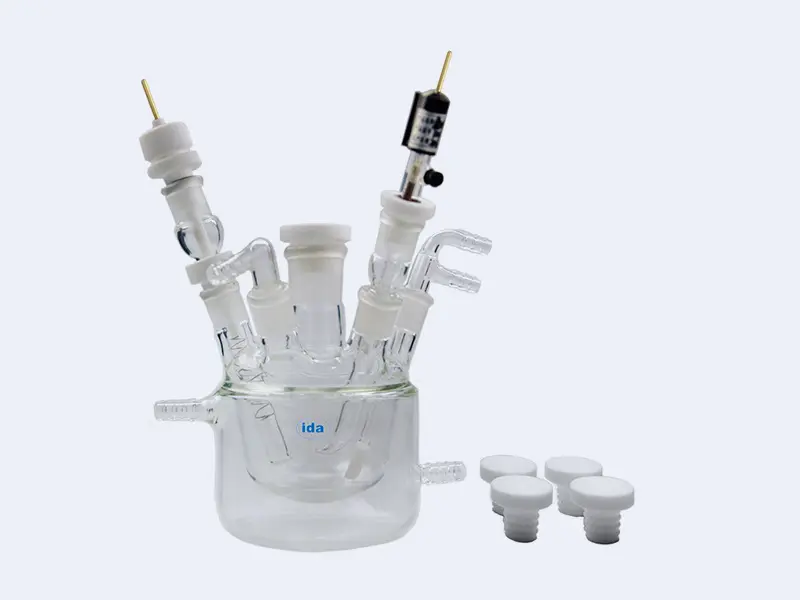

AIDA Electrolytic Cells
AIDA Tianjin standard electrochemical cells offer a robust, user-friendly platform for routine electrochemical measurements, combining high-quality glass construction with optimized port configurations for working, reference and counter electrodes. Designed for techniques such as cyclic voltammetry, corrosion studies and general electroanalytical testing, these cells support standard 6 mm electrodes, gas purging and a wide range of electrolytes, making them a reliable choice for both research laboratories and industrial QA/QC environments
5 Ports Voltammetry Cells
5 Ports Voltammetry Cells are designed for precise electrochemical analysis and testing. These cells feature a 5 ports-electrode configuration with working, reference, and counter electrodes. The cells accommodate standard 6mm electrodes and include essential components like sample vials and gas purging tubes. They are primarily used for electroanalytical detection, electrocorrosion studies, and fundamental electrode reaction research.
H-type electrolytic cells
AIDA Tianjin H-type electrolytic cells, sealed or not, without or with water jacket in one or both cells. Its versatile design makes it ideal for evaluating hydrogen diffusion and transport properties in various materials. They are primarily used for CO2 electroreduction, hydrogen permeation (Devanathan-Stachurski cell) and ASTM G148. Available in different sizes from 20ml up to 1L
Plate Corrosion Test Cell
Plate corrosion test cell is specifically designed for evaluating corrosion behavior of flat metal specimens. This specialized cell features a vertical mounting system with an exposed testing area and includes ports for reference and counter electrodes. Its robust construction ensures reliable sealing and precise measurements for corrosion studies and material evaluation..
Coating Evaluation Test Cells
Coating Evaluation Test Cells feature a specialized design for evaluating coating performance and corrosion resistance. The cell includes an organic glass body with built-in magnets for secure attachment to metal surfaces, making it ideal for on-site testing of large equipment. The cell accommodates a 5ml sample volume with a 1cm² reaction area and includes graphite rod or stainless steel counter electrodes and silver/silver chloride reference electrodes.
Standard holders and Special Cells for Battery Testing
SS316 Battery Materials Swagelok-type Cell for Coin Cell Battery Research
3‑Electrode Battery Test Cell for High‑Precision Electrochemical Characterization
It features a 10 mm internal cell diameter and a 6 mm working electrode core, and is supplied with compatible working and counter electrodes plus an interchangeable reference electrode (such as Ag/AgCl or stainless steel), enabling accurate charge–discharge and impedance measurements in research and development environments.
Split Three‑Electrode Battery Test Cell for Flexible 2-3 Electrode Measurements
Its split, quickly assembled structure allows easy loading and replacement of electrodes and separators while maintaining reliable sealing, making it well suited for laboratory research that simulates coin‑cell behavior without crimping actual coin
Double-chamber test cell for studying membranes, separators, and electrolytes
Double-chamber test cell which can be split into two compartments by inserting a membrane or separator material. Exchangeable electrodes with broad portfolio of available electrode materials. Ports in the housing for inserting capillaries or reference electrodes. Air-tight: moisture- and air-sensitive samples can be studied.
Test cell for studying solid-state batteries in 2- and 3-electrode configuration
The CompreCell DP is a versatile cell for layer-by-layer assembly of solid-state batteries, designed to handle pressures up to 1.7 GPa and temperatures from −40 °C to 250 °C. It offers active control of pressure and temperature, compatibility with CompreDrive and CompreFrame, and a hermetic design tested for sensitive samples. It supports 2- or 3-electrode configurations for conductivity studies, cycling tests, and stripping‑plating experiments.
Devices, cells and accessories for Photo-chemistry and Spectro-Electrochemistry
AIDA Photoelectrochemical cells
In-situ Raman electrochemical cell
ALS SEC-C Spectroelectrochemical Cell
ALS SEC 2120 Spectrometer system
Hepatochem Photoreactors, metabolites and LEDs
The Starter Bundles include everything you need to set up your lab and further explore the opportunities inherent with photochemical reactions. Starter Bundles are available with any of our four photoreactors PhotoRedox Box, PhotoRedOx Box TC, PhotoRedOx Box Duo, and Lucent360 either with or without sample reactions.
Devices, cells and accessories for RDE / RRDE measurements
ALS RRDE-3A
The system includes built-in gas purging capabilities and temperature control options, making it ideal for advanced hydrodynamic voltammetry and electrochemical analysis.
Ivium RRDE Rotor
Disk Electrode & Ring/Disk Electrode Tips
5 Ports RRDE/RDE Voltammetry Cells
Voltammetry Cell Stands, Special Purpose Stands & Faraday Cages
CS-3A Stand
Faraday Cage
CompreFrame
Special devices for demonstration and Learning kits
demoSTAT - Smart introduction to electrochemical instrumentation.
SK-2 Electrochemistry Starter Kit
In the SK-2 electrochemical accessories kit, you will find almost all accessories that you need for start your Electrochemical measurement. SK-2 Electrochemical accessories kit contains four items:
- PK-3 Electrode Polishing kit
- SVC-3 Voltammetry cell
- PTE Platinum electrode
- GCE Glassy carbon electrode
For starting your measurement, you need only to complete the kit with a reference electrode and electrochemical analyzer.
nEIS kit – More than just a test box.
Water Electrolyzer Science Kit LCWE-kit
High‑Performance Porous Metal Materials for Advanced Electrochemical Research
Nickel Foams and Meshes for Electrochemistry
Nickel‑based functional and composite foams
Titanium and alternative metal foams
Request for a quotation
Porous structures for hydrogen and energy systems
Are you looking for additional equipment?
Looking for the right measurement solution for your application?
Whether you need advanced instrumentation, tailored integration or support with complex data analysis, our team can help you identify the most suitable approach for your technical requirements.
