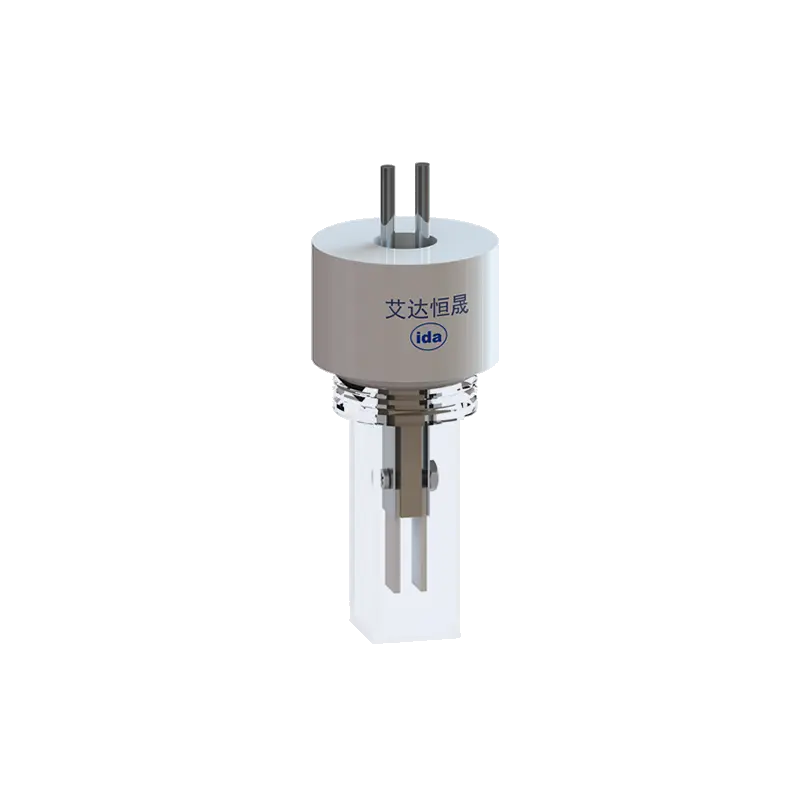

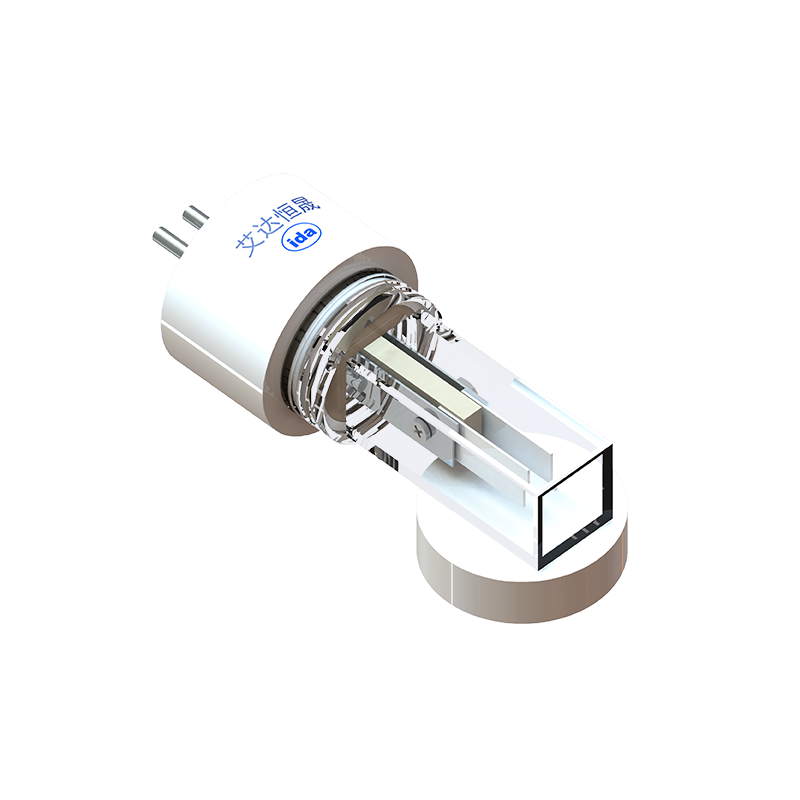

AIDA Battery In-situ Imaging Quartz Cell E003

In-situ Imaging Quartz Cell E003

The E003 cell enables real-time optical observation of a battery's side cross-section during operation. Designed for use with an optical microscope, it lets you capture in-situ images and video recordings of electrode processes as they happen.

Key features

• In-situ imaging and video of the battery cross-section
• For use with an optical microscope
• All-quartz body, 12.5 × 12.5 mm outer dimensions
• Fully sealed design
• Double-clip structure for easy electrode mounting
• Suitable for consumable electrodes
• Compatible with UV spectroscopy
• Components can be disassembled for cleaning
