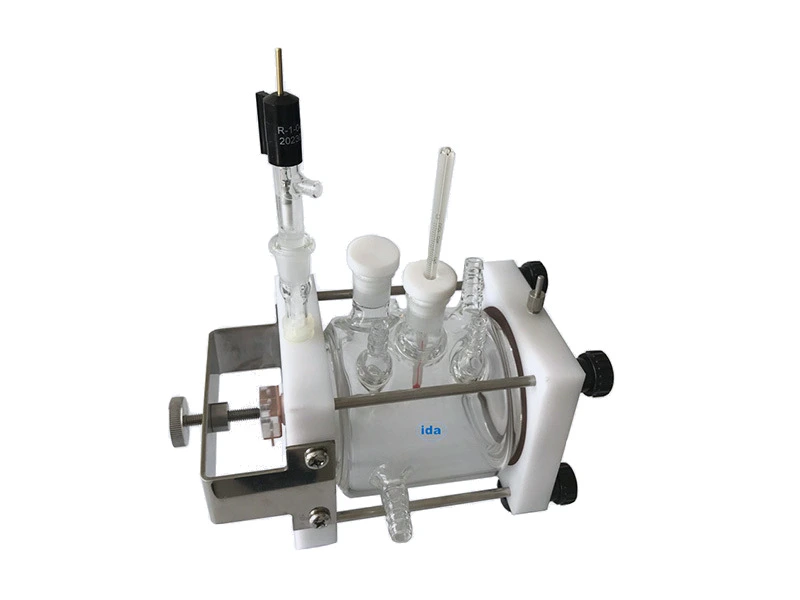

Flat Cell with Water Jacket Model AIDA F030 including:
- water Jacketed borosilicate glass Cell
- polypropylene end plates
- Viton sealing gaskets
- Ag/AgCl Reference Electrode
- Pt mesh (20mm x 20mm) counter electrode
- PTFE sample gasket
Cell volume: 250ml
Working electrode area: 1cm² (standard)
pH range: 2 to 9
Temperature limit: 80°C
