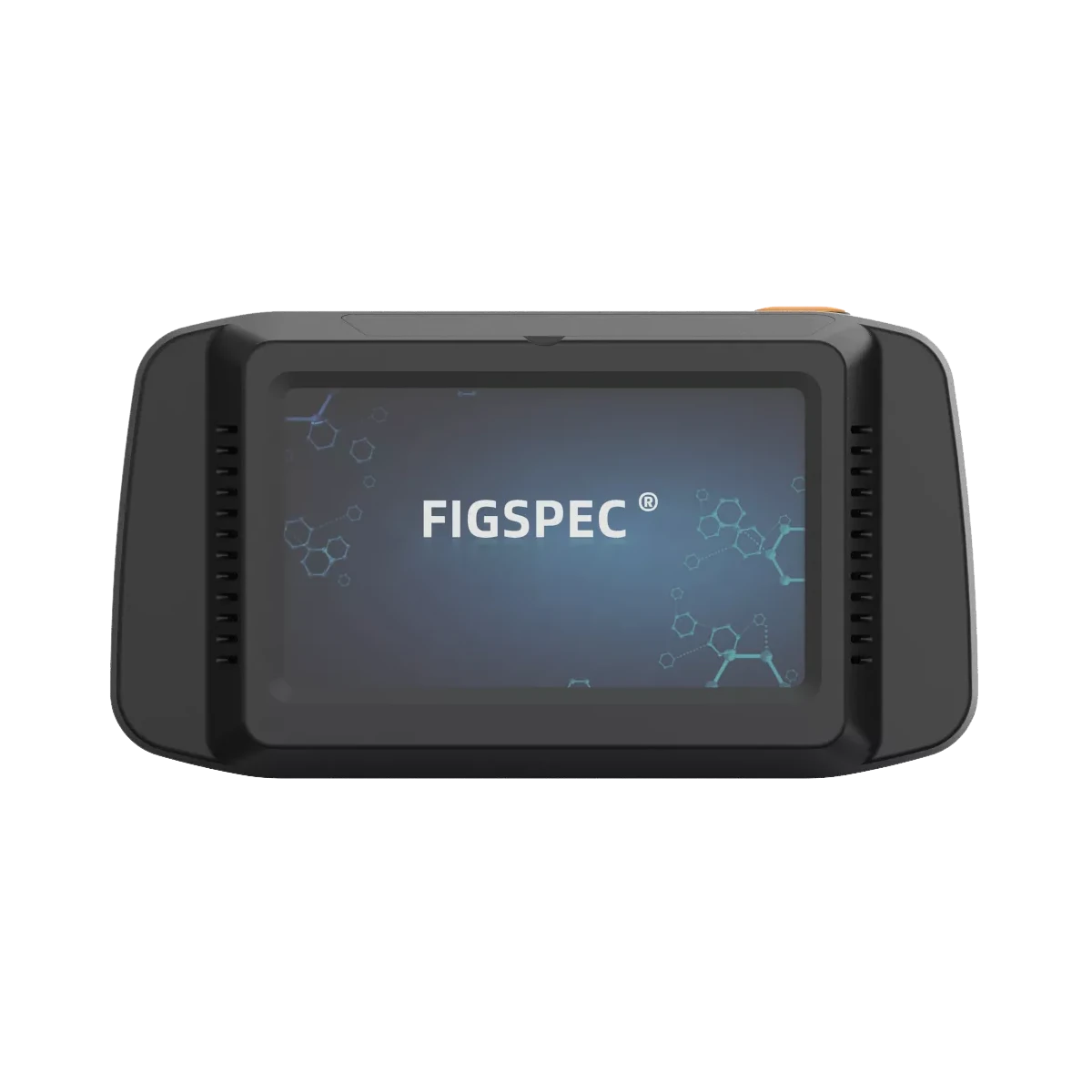

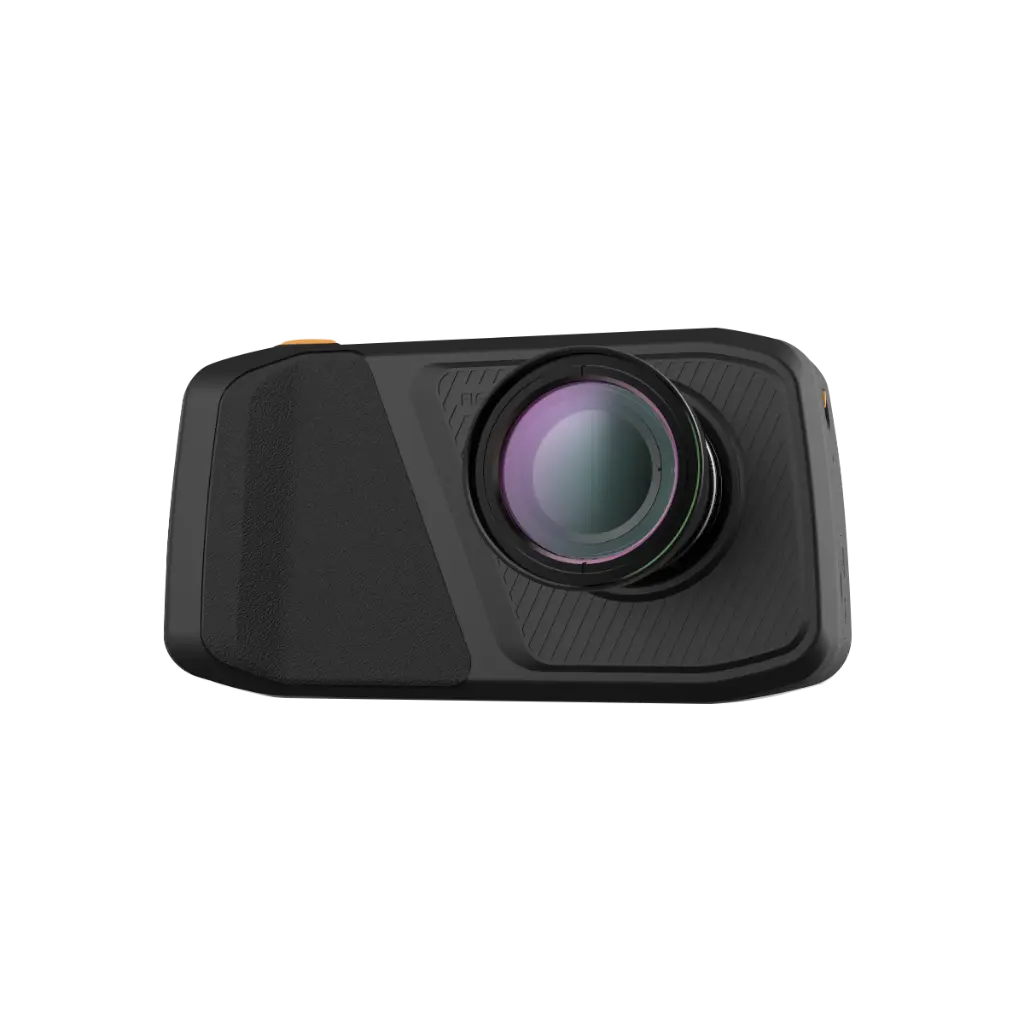

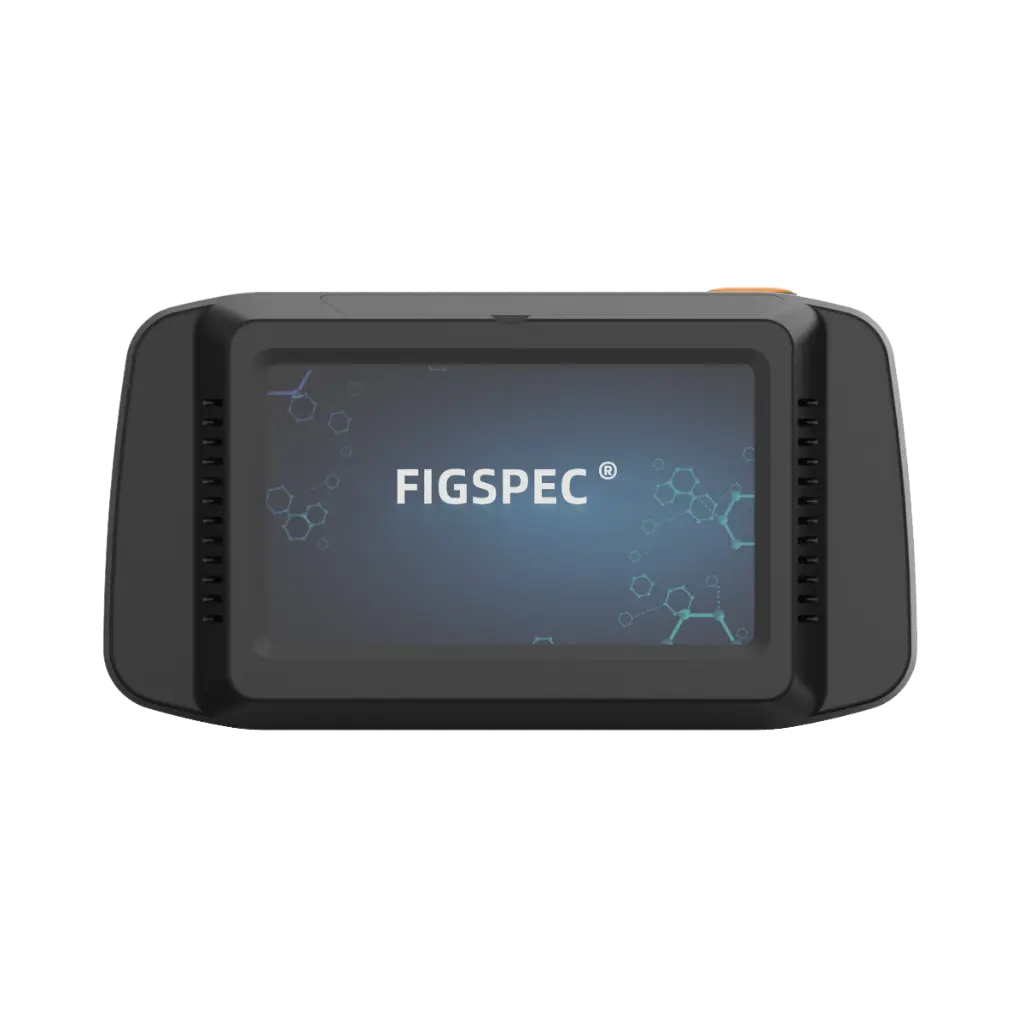

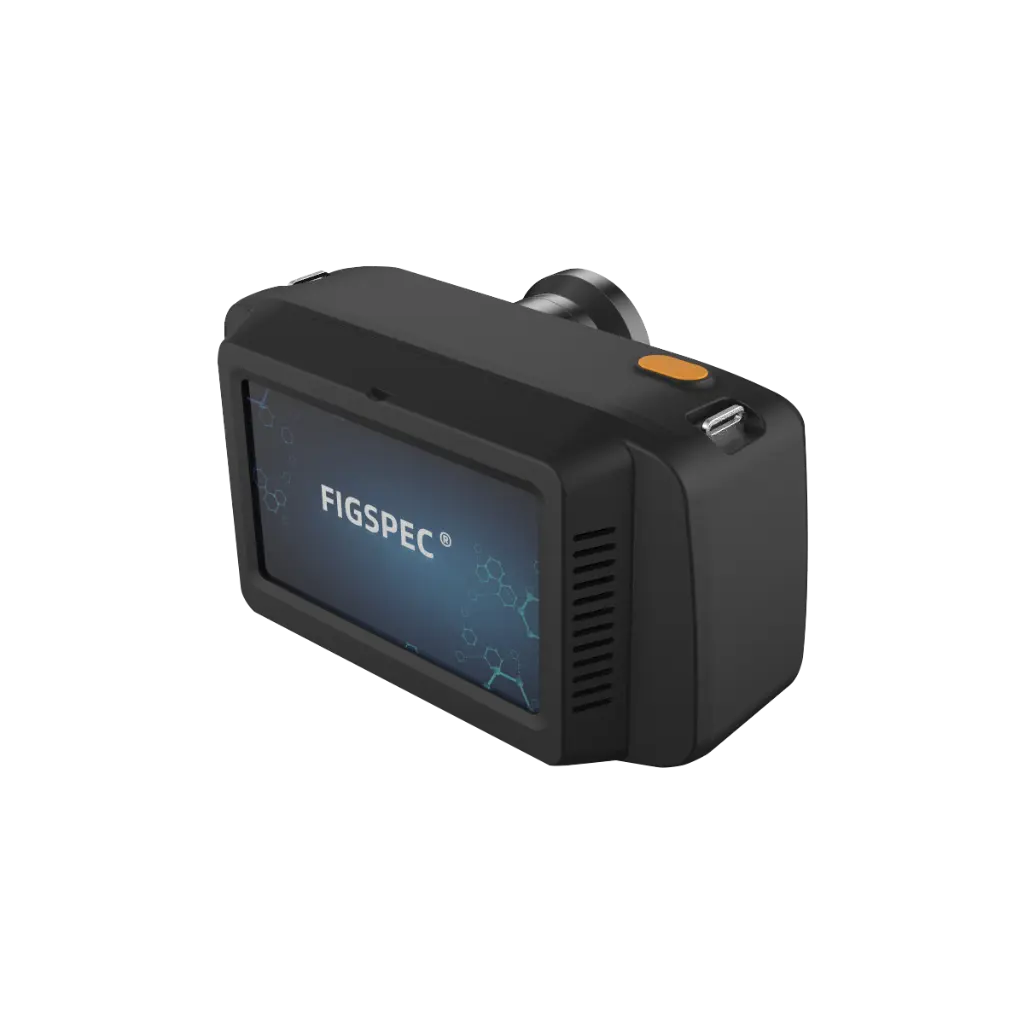

CHNSpec FSIQ-SWIR
Portable hyperspectral camera with an internal sweep and a wavelength range Circumference 400-1700nm, spectral resolution (FWHM) can reach 2.5nm, spatial resolution is up to 1920*1920, and the number of spectral channels is up to 1200；Display and operation through 5-inch touch screen, resolution 1280*720, including:
| Model Number | FS-IQ-SWIR |
Spectroscopic method | Transmission grating spectroscopy |
Image resolution | 1280*1280 |
Dynamic range | 12 bits |
Imaging speed | 5s |
Spectral channel number | 1024 |
Spectral range | 900-1700nm |
Optical harmonic resolution | 2.5nm |
Slit width | 25um |
Transmission efficiency | ≥60% |
Stray light level | ≤0.5% |
Pixel size | 5um*5um |
Detector type | InGaAs |
Standard lens focal length | 25mm |
Minimum working distance | 100mm |
Field Angle | 17° |
Minimum exposure time | 21us |
Maximum exposure time | 10s |
Signal-to-noise ratio | 600/1 |
Data interface | USB3.0 |
Camera lens interface | C |
attachment | USB3.0 transmission line |
| Auxiliary imaging function | The auxiliary view cameramonitors the shooting area |
FS-IQ SWIR camera includes:
- FS-IQ- SWIR Camera
- Standard Lens (25mm)
- Power adapter (12V 5A)
- Power plug
- Data cable (1m)
- Reflectivity Calibration Plate (100x100mm, 90%)
- USB flash drive
- Lens cleaning cloth
- Black aluminum alloy packaging box
47,692.00 €
47,692.00 €
(Tax excluded)
